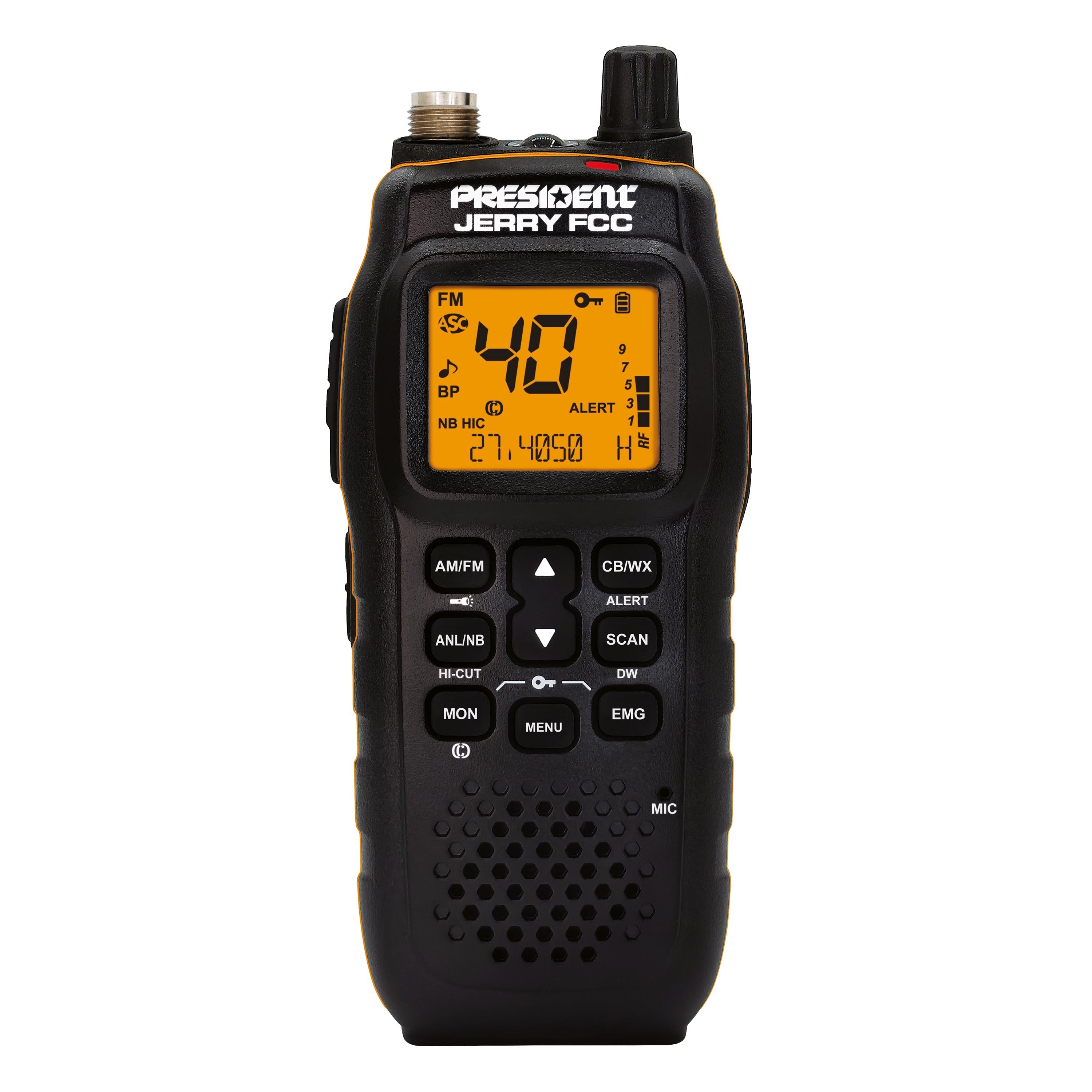

President JERRY FCC TXUS623-1 40 Channel Portable CB Radio

President JERRY FCC TXUS623-1 40 Channel Portable CB Radio

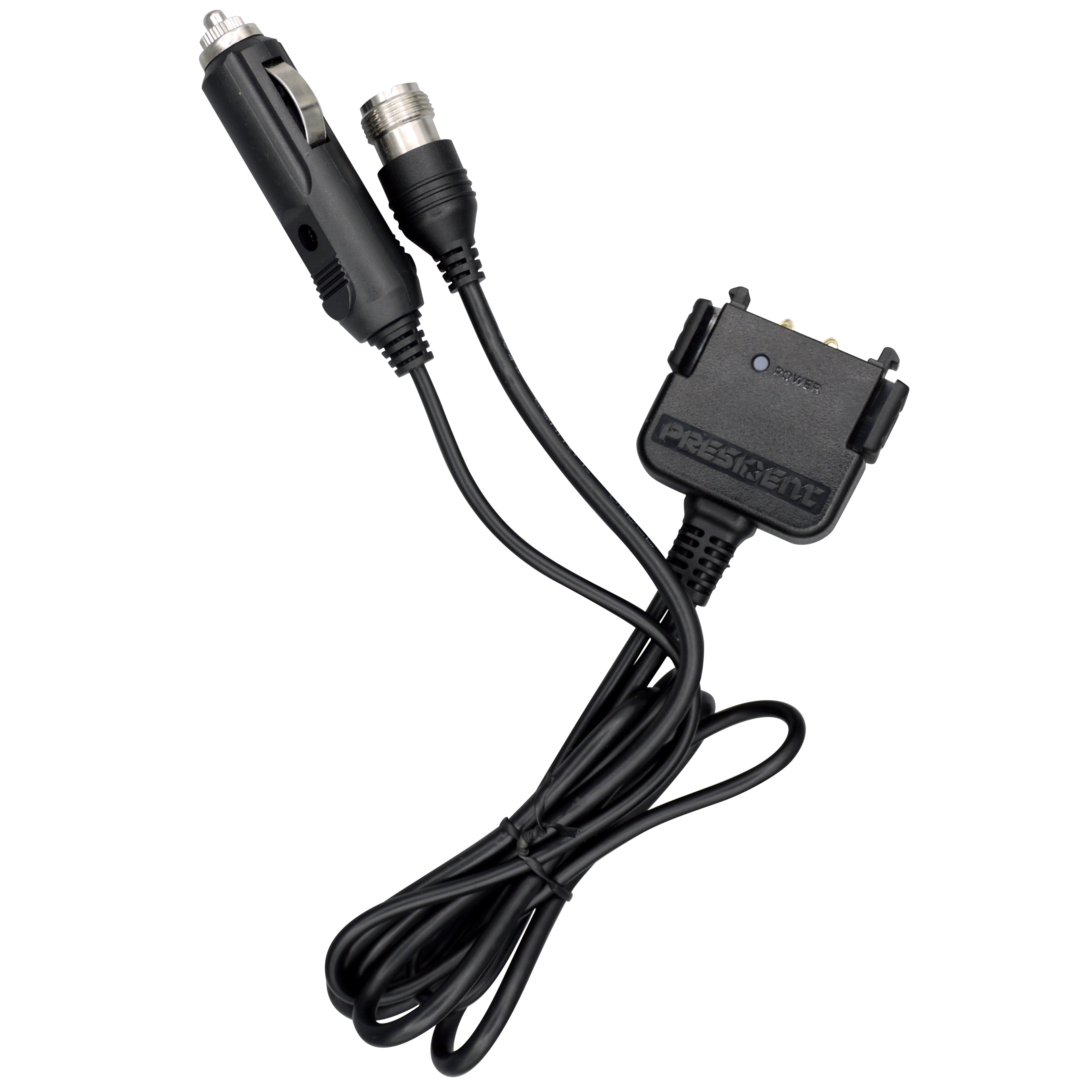

Specifications: Supply: 7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
Number of channels: 40
AM: Yes
FM: Yes
Channel selector: up / down
Number of weather channels: 7
Weather alert: Yes
Volume: Volume adjustment and ON/OFF
RF Power: Yes
Squelch: Manual squelch
ASC: Yes
Display: LCD multifunction
Frequencies display: Yes
S-meter: Digital
Filter ANL: Yes
Filter NB: Yes
Filter HI-CUT: Yes
Scan: Yes
F / Menu function key: Yes
Beep Function: Yes
Roger beep: Yes
Dual watch: Yes
Key locking: Yes
Preset channel: EMG
External Vox microphone jack: Yes
External loudspeaker jack: Yes
Size (W x D x H): 5.98 (H) x 2.62 (L) x 1.46 (P) inches

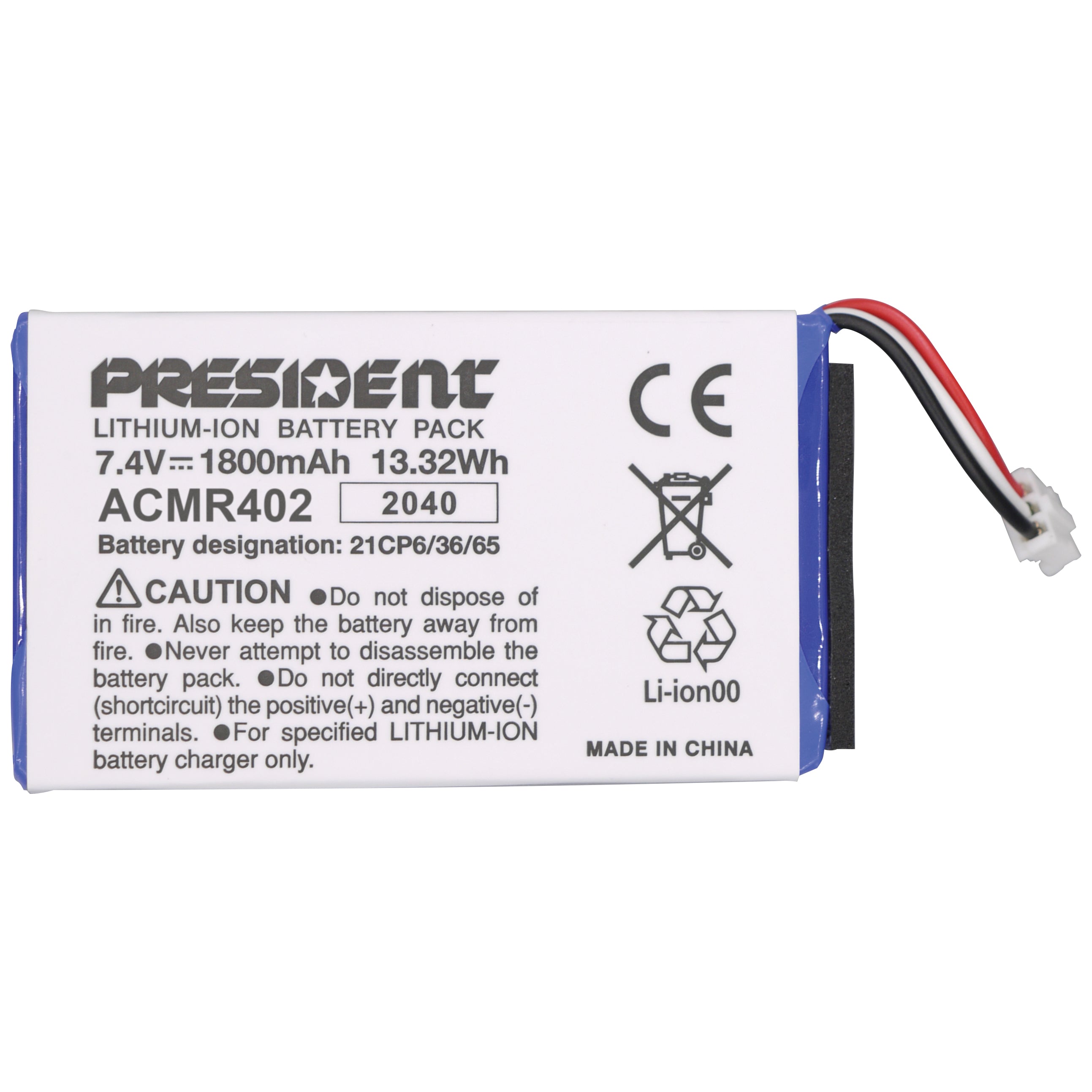

Weight: 305 g / 0.67 lb with battery pack



Transmission:
Frequency allowance: +/- 200Hz
Carrier power: 4 W AM / 4 W FM
Transmission interference: inferior to 4 nW (- 54 dBm)
Audio response: 300 Hz to 2,5 kHz
Emitted power in the adj. channel: inferior to 20 μW
Microphone sensitivity: 6 mV
Drain: 1,8 A (with modulation power Hi)
Modulated signal distortion: 2 %



Reception
Maxi. sensitivity at 20 dB sinad: AM : 0,5 μV - 113 dBm FM: 0.3 μV - 116 dBm WX : 0,3 μV - 116 dBm
Frequency response: 300 Hz to 2.5 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 1 W
Squelch sensitivity: min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate frequency rej. rate: 70 dB
Drain: Menu ECO
