Overview

About This Product

Description

Kicker 41L7102

10 inch L7 Dual 2 ohm Subwoofer

The L7 stands alone as the most unique subwoofer on the market, with a cone shape that is exclusively designed to produce more output.

The KICKER L7 Subwoofer again reaches new heights in technology and design, capturing the imaginations of 2015 CES® Innovation Award judges and solidifying itself as the crown jewel among industry subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor.

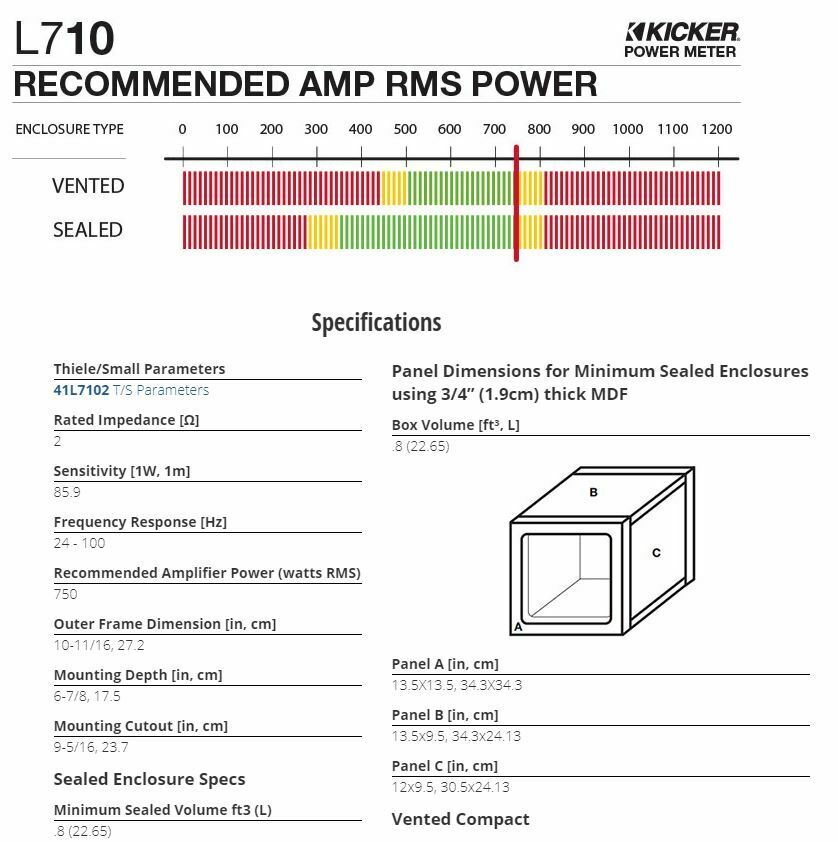

Recommended Power

Specifications

  • Rated Impedance [Ω]   2
  • Fs [Hz]   37.5
  • Sensitivity [1W, 1m]   85.9
  • Qts   0.507
  • Qms   9.791
  • Qes   0.535
  • Re [Ω]   7.9
  • Vas [ft³, L]   1, 28.32
  • Continuous Power Handling [Watts RMS]   750
  • Outer Frame Dimension [in, cm]   10-11/16, 27.2
  • Mounting Depth [in, cm]   6-7/8, 17.5
  • Mounting Cutout [in, cm]   9-5/16, 23.7
  • Frequency Response [Hz]   24 - 100

Sealed Enclosure Specifications

  • Minimum Sealed Volume ft3 (L)    .8 (22.65)
  • Minimum Sealed Power Handling    750W RMS
  • Maximum Sealed Volume ft3 (L)    1.25 (35.4)
  • Maximum Sealed Power Handling    750W RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF

  • Box Volume [ft³, L]    .8 (22.65)
  • Panel A [in, cm]    13.5X13.5, 34.3X34.3
  • Panel B [in, cm]    13.5x9.5, 34.3x24.13
  • Panel C [in, cm]    12x9.5, 30.5x24.13

Panel Dimensions

Vented Compact

  • Box Volume, ft³ (L) + port displacement    1.25 (35.4)
  • Port Opening Size, in x in (cm x cm)    2.5x11.25 (6.4x29)
  • Port Length, in (cm)    19.75 (50)
  • Power Handling, RMS    750

Vented SQ

  • Box Volume, ft³ (L) + port displacement    2.25 (63.7)
  • Port Opening Size, in x in (cm x cm)    3x11.25 (7.6x29)
  • Port Length, in (cm)    18 (46)
  • Power Handling, RMS    750

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.

Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.

  • 750 watt RMA Power Handling
  • Unique Innovative Square Design
