Car Toys JL Audio Dual 12" Subwoofer Bass Package - PPJLA8

Car Toys JL Audio Dual 12" Subwoofer Bass Package - PPJLA8

Package Includes:

• 1 - JL Audio CP212-W0v3 Loaded Dual Subwoofer Enclosure
• 1 - JL Audio JD500/1 500 Watt Mono Subwoofer Amplifier

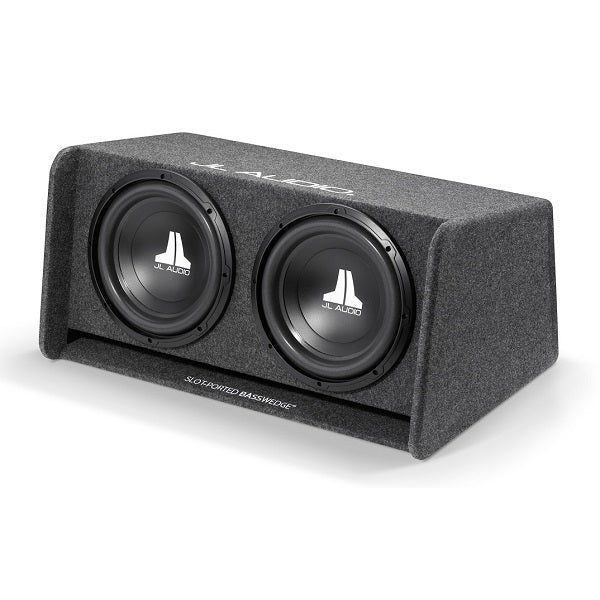

JL Audio CP212-W0v3 Dual 12" BassWedge Ported Enclosure

This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value. The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises. The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle. This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal. Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.



General Specifications
Continuous Power Handling (RMS) 600 W
System Nominal Impedance 2 Ω
Enclosure Type Slot-ported
Finish Gray carpet
Grille Included No



Physical Specifications
Construction: MDF
External Width (W) 31.375 in / 797 mm
External Height (H) 15.18 in / 386 mm
External Depth (D1) 20.3 in / 516 mm
External Top Surface Depth (D2) 15.75 in / 400 mm
Net Weight 60.3 lb / 27.35 kg

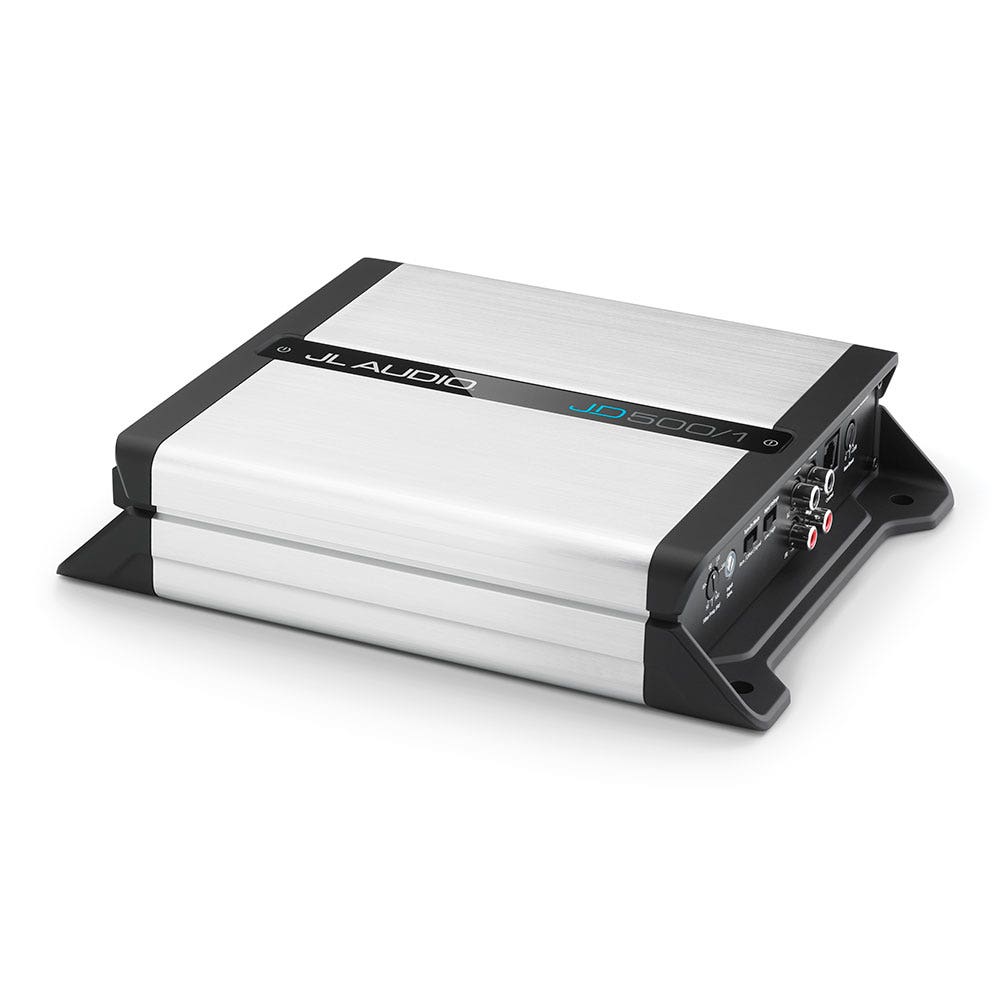

JL Audio JD500/1 Monoblock Class D Subwoofer 500 Watt Amplifier

Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion. The JD500/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier. The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.



specifications



Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω: 250 W RMS x 1
@ 3 Ω: 350 W RMS x 1
@ 2 Ω: 500 W RMS x 1



Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω: 225 W RMS x 1
@ 3 Ω: 300 W RMS x 1
@ 2 Ω: 400 W RMS x 1



General Specifications
Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >1000 / 50 Hz
Damping Factor @ 2 Ω: >500 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)



Signal Processing
Filter Mode(s): Low-Pass only
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer: No
Filter Defeat Function: No
Infrasonic Filter: No
Bass Boost EQ: Yes
Output Polarity Switch: No
Remote Subwoofer Level Control: Optional (RBC-1)
Remote Bass EQ Boost Control: No
Pass-Through Preamp Output: Buffered



Physical Specifications
Height (H): 2.10 in / 53 mm
Width (W): 9.50 in / 242 mm
Depth (D): 7.50 in / 190 mm
