JL Audio Single 10" Subwoofer Bass Package - PPJLA6

JL Audio Single 10" Subwoofer Bass Package - PPJLA6

Package Includes:

• 1 - JL Audio CP110W0v3 Loaded Enclosure
• 1 - JL Audio JD250/1 Mono Amplifier

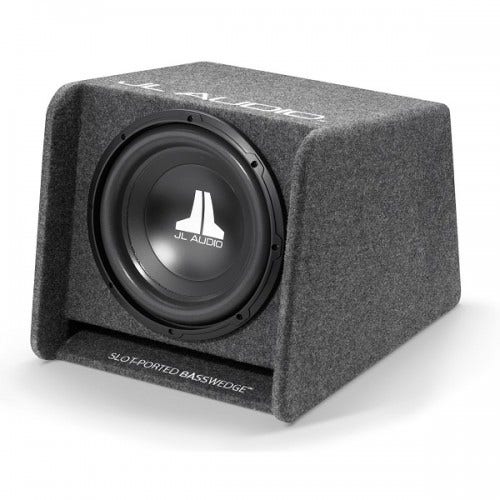

JL Audio CP112-W0v3 12" BassWedge Ported Enclosure

This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value. The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises. The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle. This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.



General Specifications Recommended amplifier power: 75 - 300W Continuous Power Handling (RMS): 300 W System Nominal Impedance: 4 Ω Construction: MDF Enclosure Type: Slot-ported Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth. Grille Included: No



Physical Specifications External Width (W): 16.31 in / 414 mm External Height (H): 15.18 in / 386 mm External Depth (D1): 20.3 in / 516 mm External Top Surface Depth (D2): 15.75 in / 400 mm Net Weight: 33.1 lb / 15 kg

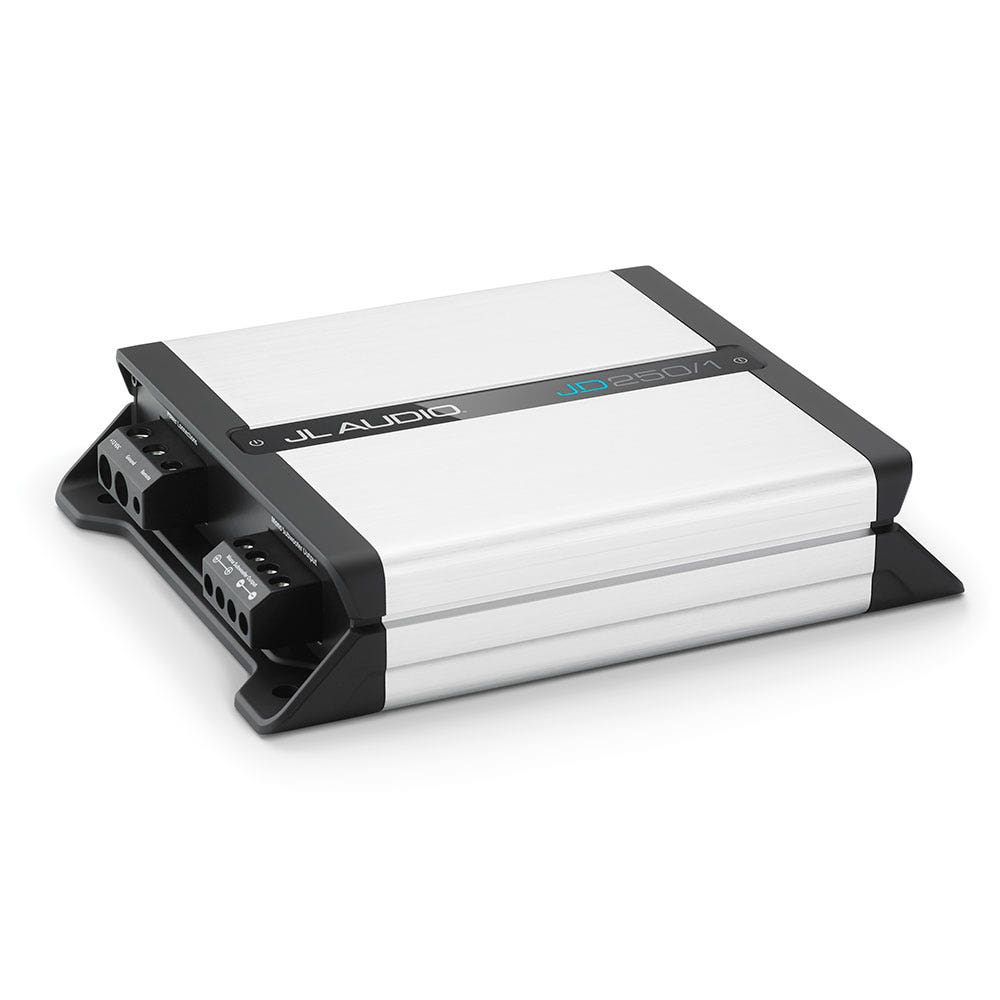

JL Audio JD250/1 Monoblock Class D Subwoofer 250 Watt Amplifier

Designed to produce a healthy 250 watts into 2 ohms (14.4V, 1% THD), the JD250/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion. The JD250/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier. The JD250/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you easily set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.



Specifications
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω: 150 W RMS x 1
@ 3 Ω: 200 W RMS x 1
@ 2 Ω: 250 W RMS x 1
@ 1.5 Ω: N/A Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω: 115 W RMS x 1
@ 3 Ω: 150 W RMS x 1
@ 2 Ω: 200 W RMS x 1
@ 1.5 Ω: N/A



General Specifications
Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >1000 / 50 Hz
Damping Factor @ 2 Ω: >500 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge: 8 AWG wire
Fuse Rating: 30 A (AFS, AGU or MaxiFuse™)



Signal Processing
Filter Mode(s): Low-Pass only
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer: No
Filter Defeat Function: No
Infrasonic Filter: No
Bass Boost EQ: Yes
Output Polarity Switch: No
Remote Subwoofer Level Control: Optional (RBC-1)
Remote Bass EQ Boost Control: No
Pass-Through Preamp Output: Buffered



Physical Specifications
Height (H): 2.10 in / 53 mm
Width (W): 9.50 in / 242 mm
Depth (D): 7.50 in / 190 mm
