JL Audio C7-350cm 3.5" Component Midrange with Grille - Single Midrange Speaker
C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from our most advanced development tools and a complete commitment to precision manufacturing.
The C7-350cm component midrange is designed to operate in a 3-way system, with a woofer and tweeter. Conceived and purpose-built from the ground up, it offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural mid-range reproduction. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.
Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
C7-350cm Design Notes
Cone and Dust Cap Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A concave dust cap further improves high frequency behavior.
Suspension Design The moving assembly is suspended and damped via a linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting excursion.
Motor Design The C7-350cm employs a high-density magnetic circuit with a high-grade, neodymium magnet, and a specially machined, U-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range.
A 36 mm (1.42 inch) diameter, overhung voice coil is employed, wound with copper-clad aluminum wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels.

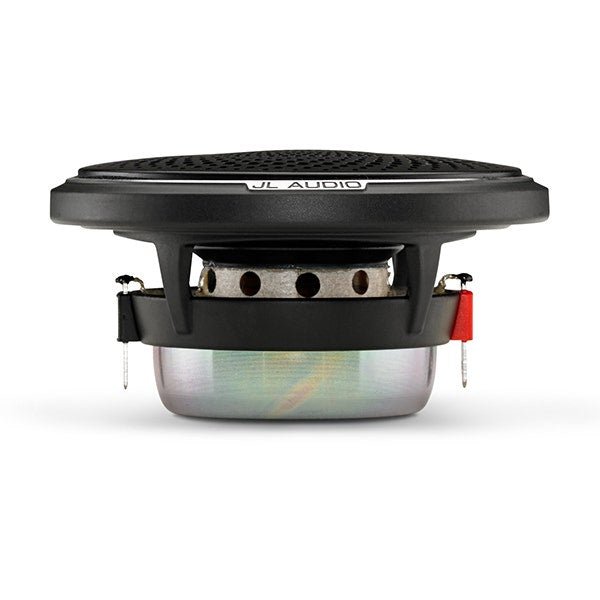

Chassis Design A purpose-engineered cast alloy basket is employed, featuring thin spokes to maximize rear open area.
Design Bandwidth With 48 dB/octave filters: 300 Hz - 10 kHz
With 24 dB/octave filters: 400 Hz - 10 kHz
With 12 dB/octave filters: 500 Hz - 10 kHz

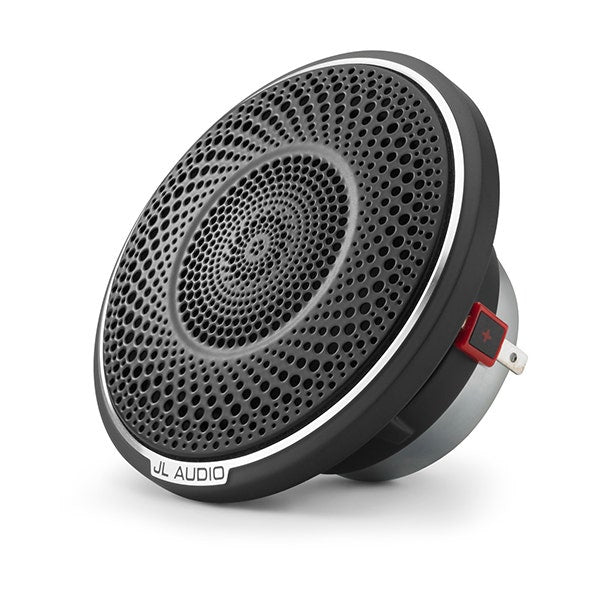

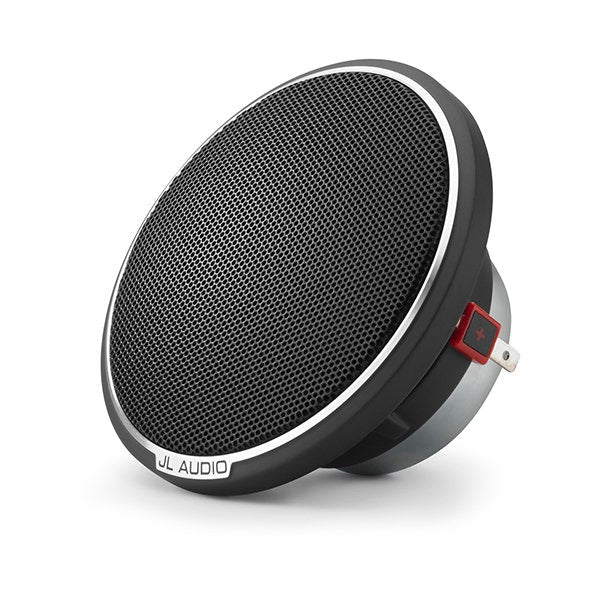

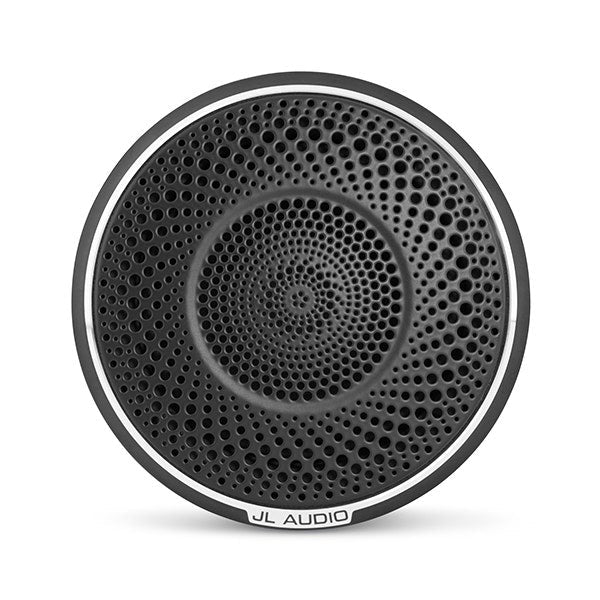

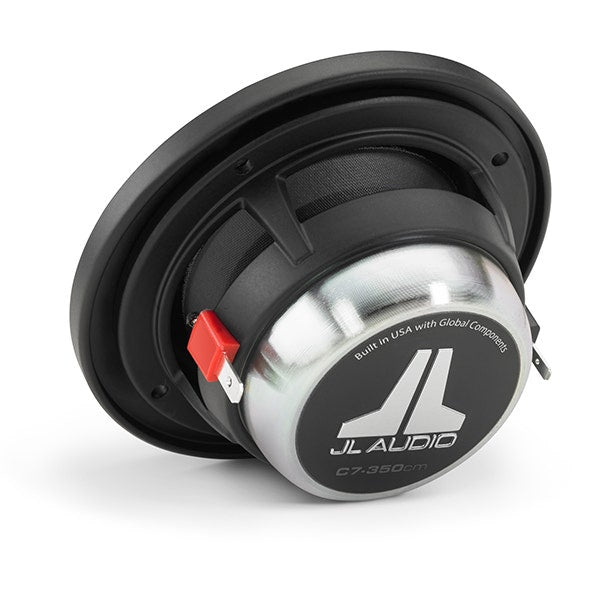

Built in USA with Global Components Sold individually, with a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert.
The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report.
Specifications
General Specifications
- Continuous Power Handling (RMS) 100 W
- Peak Music Power 200 W
- Recommended Amplifier Power (RMS) 50 - 150 W / Ch.
- Nominal Impedance 4 Ω
- Frequency Response 300 Hz - 10 KHz ± 3 dB
Parameters
- Moving Mass (Mms) 4.009 g
- Equivalent Compliance (Vas) 0.015 cu. ft. (0.430 liters)
- Mechanical Compliance (Cms) 0.000257 m/N
- Magnetic Strength (BL) 4.66 N/A
- One Way Linear Excursion (Xmax) 1 mm
- Effective Piston Area (Sd) 5.31 sq. in. (0.003426 sq. m)
- Total Speaker “Q” (Qts) 0.541
- Mechanical “Q” (Qms) 6.454
- Reference Efficiency (no) 0.27%
- Free Air Resonance (Fs) 156.9 Hz
- Efficiency 86.5 dB @ 1W / 1m
- 92.5 dB @ 1W / 0.5m
- Sensitivity 89.5 dB @ 2.83V / 1m
- Electrical “Q” (Qes) 0.59
- Voice Coil Resistance (Re) 3.245 Ω
Midrange Physical Specifications
- Frame Outer Diameter (A) 3.45 in / 88 mm
- Bolt Hole Circle Diameter (B) 3.15 in / 80 mm
- Mounting Hole Diameter (C) 2.87 in / 73 mm
- Grille Tray Outer Diameter (D) 3.95 in / 100 mm
- Frontal Grille Protrusion (E) 0.58 in / 15 mm
- Mounting Depth (F) 1.46 in / 37 mm
- Motor Outer Diameter (G) 2.36 in / 60 mm
Technology
Dynamic Motor Analysis - DMA Optimized Motor JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Detailed Information:Since 1997, JL Audio has been at the forefront of Finite Element Analysis-based modeling of loudspeaker motors and suspensions. This research is aimed at decoding what we refer to as the "Loudspeaker Genome"... a project aimed at understanding the true behavior of loudspeakers under power and in motion. A major component of this integrated system is DMA (Dynamic Motor Analysis). Starting with the 15W3 and the W7 Subwoofers in the late 1990's and early 2000's, DMA has played an important role in the design of all JL Audio woofers sold today, including our component woofers.
DMA is a Finite Element Analysis (FEA)-based system, meaning that it takes a large, complex problem, breaks it down into small solution elements for analysis and then assembles the data to form an accurate, "big-picture" solution. DMA's breakthrough is that it actually considers the effects of power through the coil as well as coil/cone position within the framework of a time-domain analysis. This gives us a highly accurate model of a speaker's actual behavior under real power, something that the traditional Thiele-Small models or other low power measurements cannot do. Because DMA does not rely on a steady-state model, it is able to consider shifts in the circuit elements being analyzed. These modeling routines are intense, requiring hours to run for a whole speaker.
DMA is able to analyze the real effects of fluctuating power and excursion upon the magnetic circuit of the motor, specifically the dynamic variations of the "fixed" magnetic field. This delivers intensely valuable information compared to traditional modeling, which assumes that the "fixed" field produced in the air gap by the magnet and the motor plates is unchanging. DMA not only shows that this "fixed" field changes in reaction to the magnetic field created by current flowing through the voice coil, but it helps our engineers arrive at motor solutions that minimize this instability. Analyzing this behavior is critical to understanding the distortion mechanisms of a speaker motor and sheds light on the aspects of motor design that determine truly linear behavior:
- Linear motor force over the speaker's operational excursion range
- Consistent motor force with both positive and negative current through the coil
- Consistent motor force at varying applied power levels
Our ability to fully analyze these aspects of motor behavior allows our transducer engineers to make critical adjustments to motor designs that result in extremely linear, highly stable dynamic loudspeaker motor systems.
The payoff is reduced distortion, improved transient performance and stellar sound quality.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902) JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Detailed Information: Many speakers employ venting techniques to enhance voice coil cooling. This is typically accomplished by having big holes in the sides of the frame just below the spider attachment shelf. While it provides a modest cooling benefit, this low-velocity air-flow does not blow directly or strongly on the voice coil.
Our patented design improves upon this cooling technique in a number of ways. By elevating the frame above the top-plate of the motor (via stand-offs integrated into the bottom of the frame) a narrow, high-velocity air-path is created between the bottom surface of the frame and the top surface of the top-plate. This air path leads directly to the voice coil and then turns upward into the spider air cavity. By utilizing the pumping action of the spider through this focused air path, a large volume of cool air hits the coil windings directly.
Another important benefit is that the upper surface of the top-plate (one of the speaker's hottest parts) is directly exposed to cooling air flow, whereas on a conventional design it is isolated from the air flow by the lower flange of the frame. The elevated frame technology greatly increases thermal power handling, reduces compression effects and does so without any additional parts.
