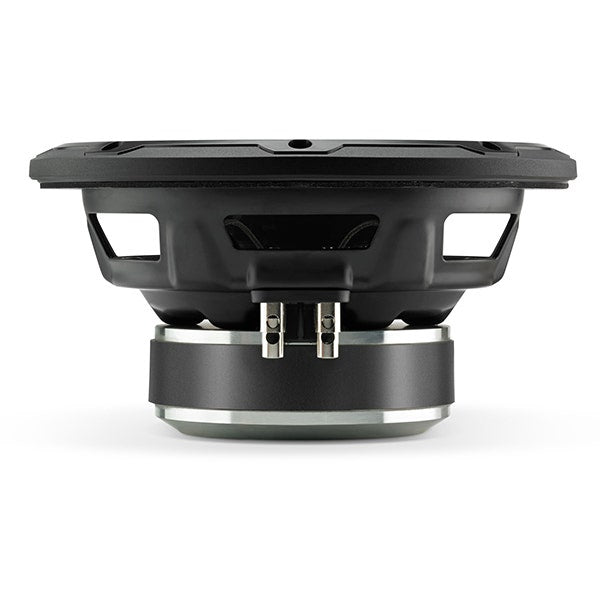

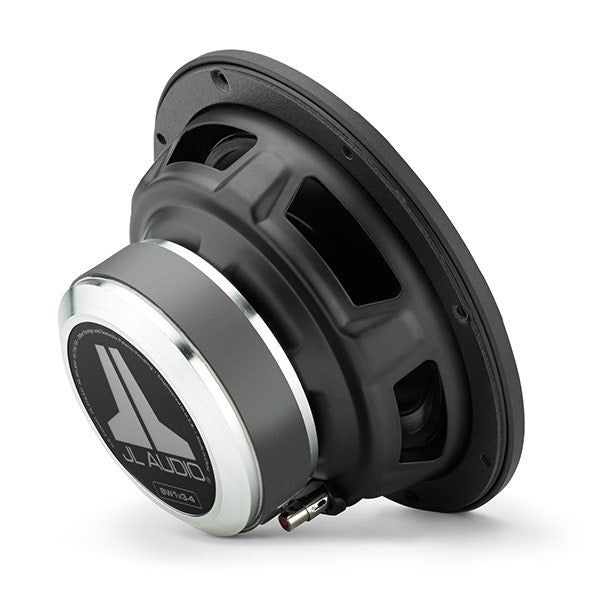

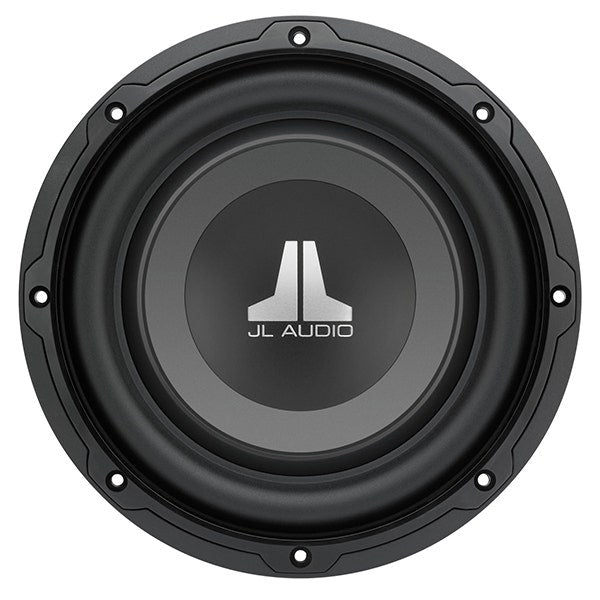

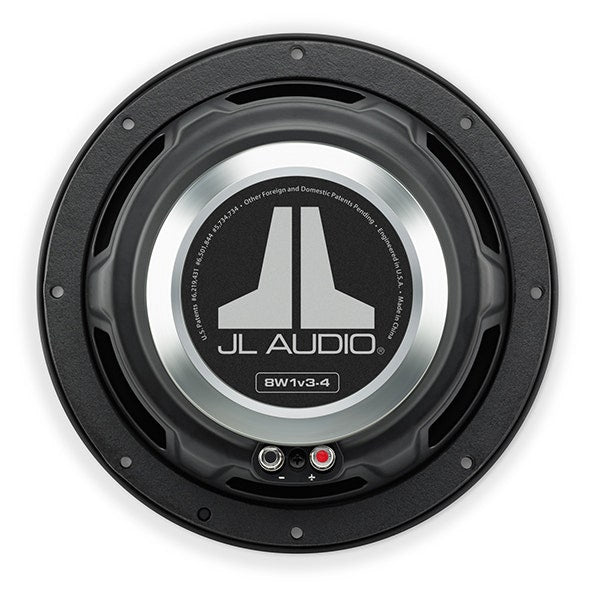

JL Audio 8W1v3-4 8 Inch Subwoofer Driver

Brand JL AUDIO
SKU:  8W1V34
(0 Reviews)

JL Audio 8W1v3-4 8 Inch Subwoofer Driver

$199.99
Out of Stock

Free Shipping

On orders $35 or more
Installation Service
Available at all Car Toys locations
Our certified installers are true automotive enthusiasts. Their work is their passion and for jobs big or small, simple or complex, there's no better way to go..
Brand JL AUDIO
SKU:  8W1V34
(0 Reviews)
Out of Stock

JL Audio 8W1v3-4 8 Inch Subwoofer Driver

$199.99

Overview

About This Product

Description

JL Audio 8W1v3-4

8" Subwoofer Driver Sku# 92079

Overview

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 8W1v3-2 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure. Detailed enclosure recommendations can be found below.

Specifications

General Specifications

Recommended Power

  • Continuous Power Handling (RMS) 150 W
  • Recommended Amplifier Power (RMS) 50 - 150 W
  • Nominal Impedance (Znom) 4 Ω

Physical Specifications

Physical Specifications

  • Nominal Diameter 8.0 in / 200 mm
  • Overall Diameter (A) 8.5 in / 216 mm
  • Mounting Hole Diameter (B) 7.09 in / 180 mm
  • Bolt Hole Circle Diameter (C) 7.85 in / 199 mm
  • Motor Outer Diameter (D) 4.72 in / 120 mm
  • Mounting Depth (E) 3.86 in / 98 mm
  • Driver Displacement 0.018 cu ft / 0.51 L
  • Net Weight 7.4 lb / 3.4 kg

Parameters

  • Free Air Resonance (Fs) 35.40 Hz
  • Electrical “Q” (Qes) 0.451
  • Mechanical “Q” (Qms) 5.791
  • Total Speaker “Q” (Qts) 0.418
  • Equivalent Compliance (Vas) 0.68 cu ft / 19.26 L
  • One-Way Linear Excursion (Xmax)* 0.3 in / 8 mm
  • Reference Efficiency (no) 0.18%
  • Efficiency (1 W / 1 m)** 84.8 dB SPL
  • Effective Piston Area (Sd) 32.67 sq in / 0.0211 sq m
  • DC Resistance (Re) 4.06 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications

Sealed Enclosure Specifications

  • Wall Thickness 0.75 in / 19 mm
  • Front Baffle Thickness 0.75 in / 19 mm
  • Volume (net int.) 0.350 cu ft / 9.90 L
  • External Width (W) 12 in / 305 mm
  • External Height (H) 10 in / 254 mm
