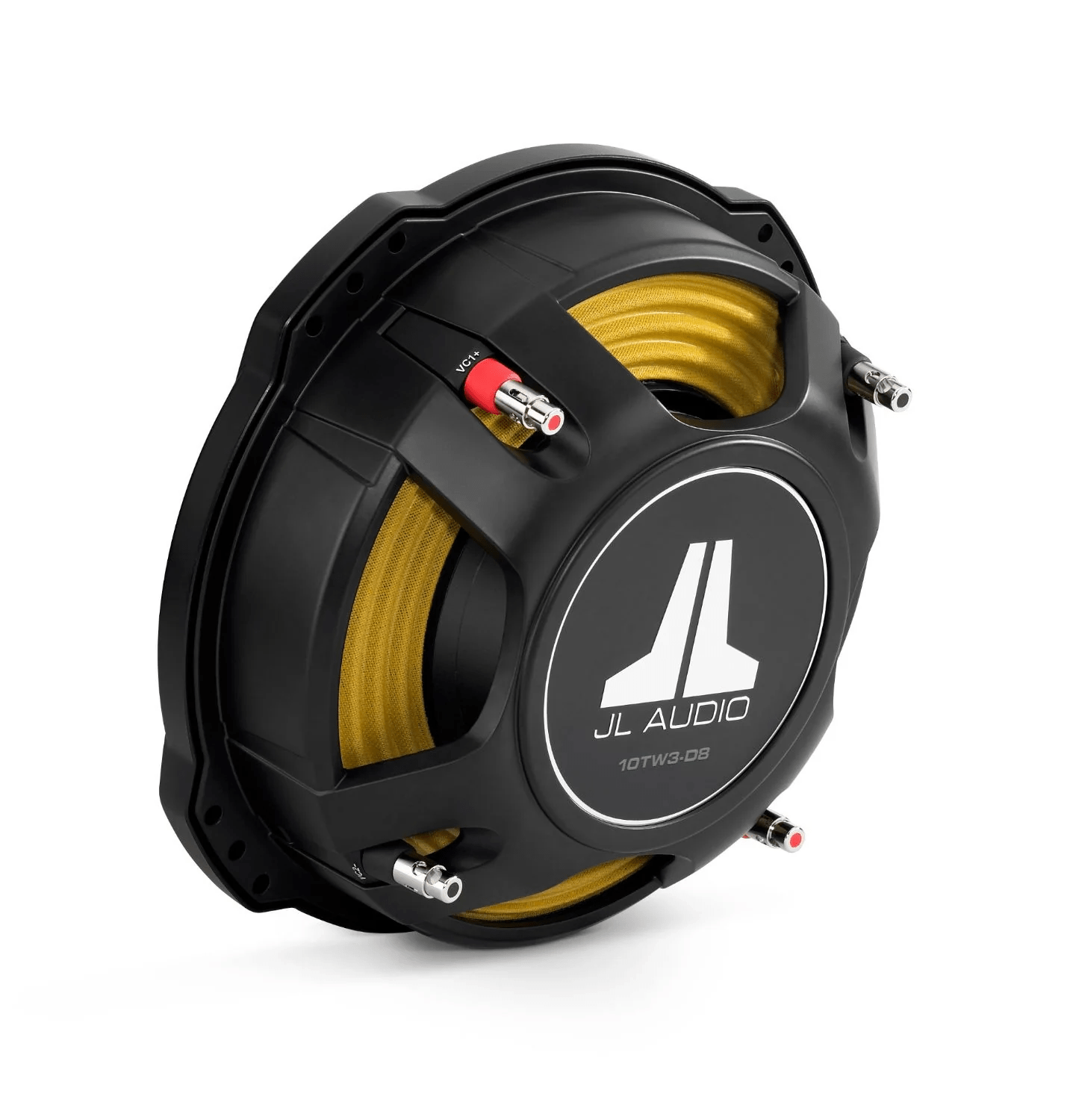

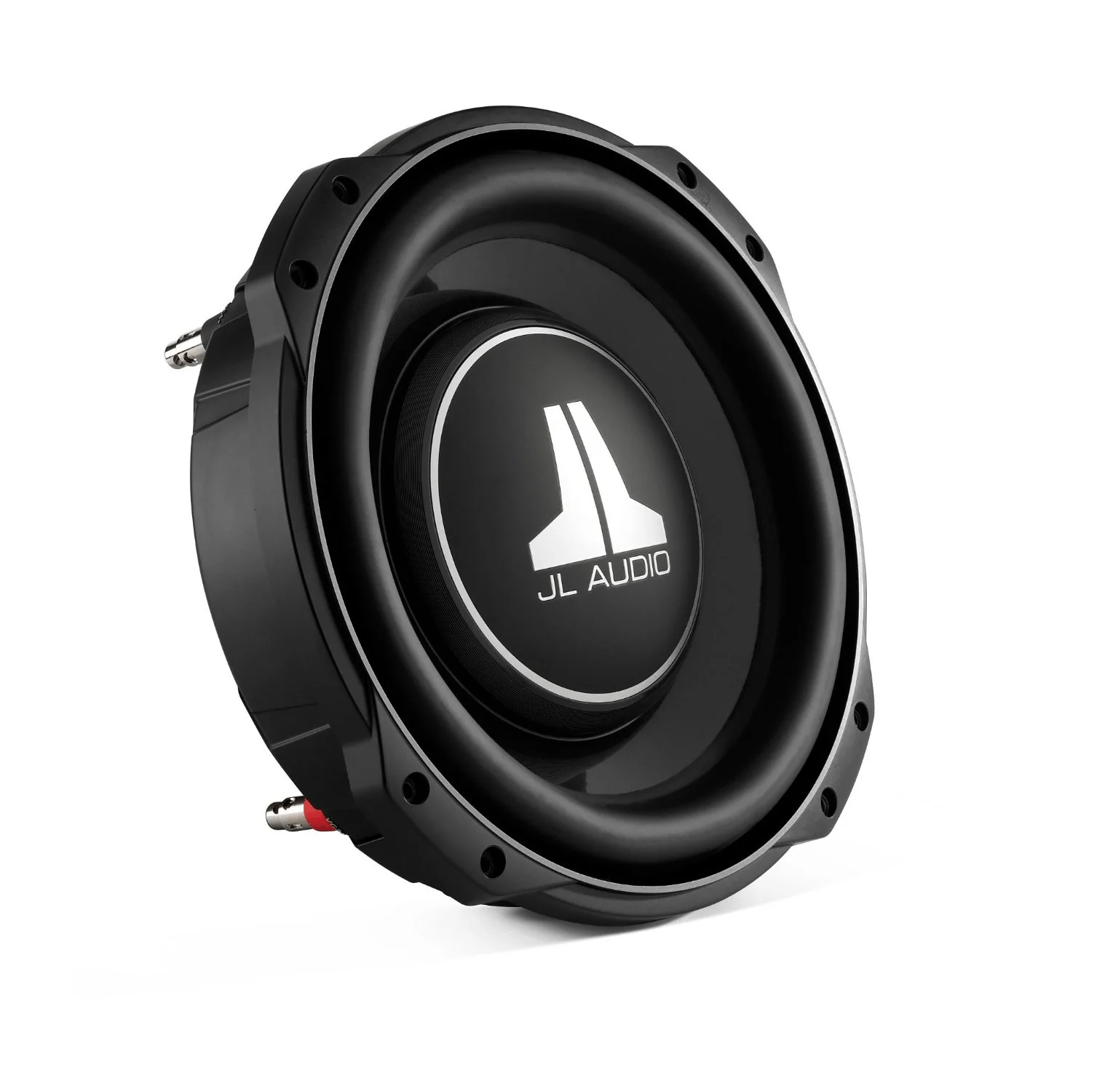

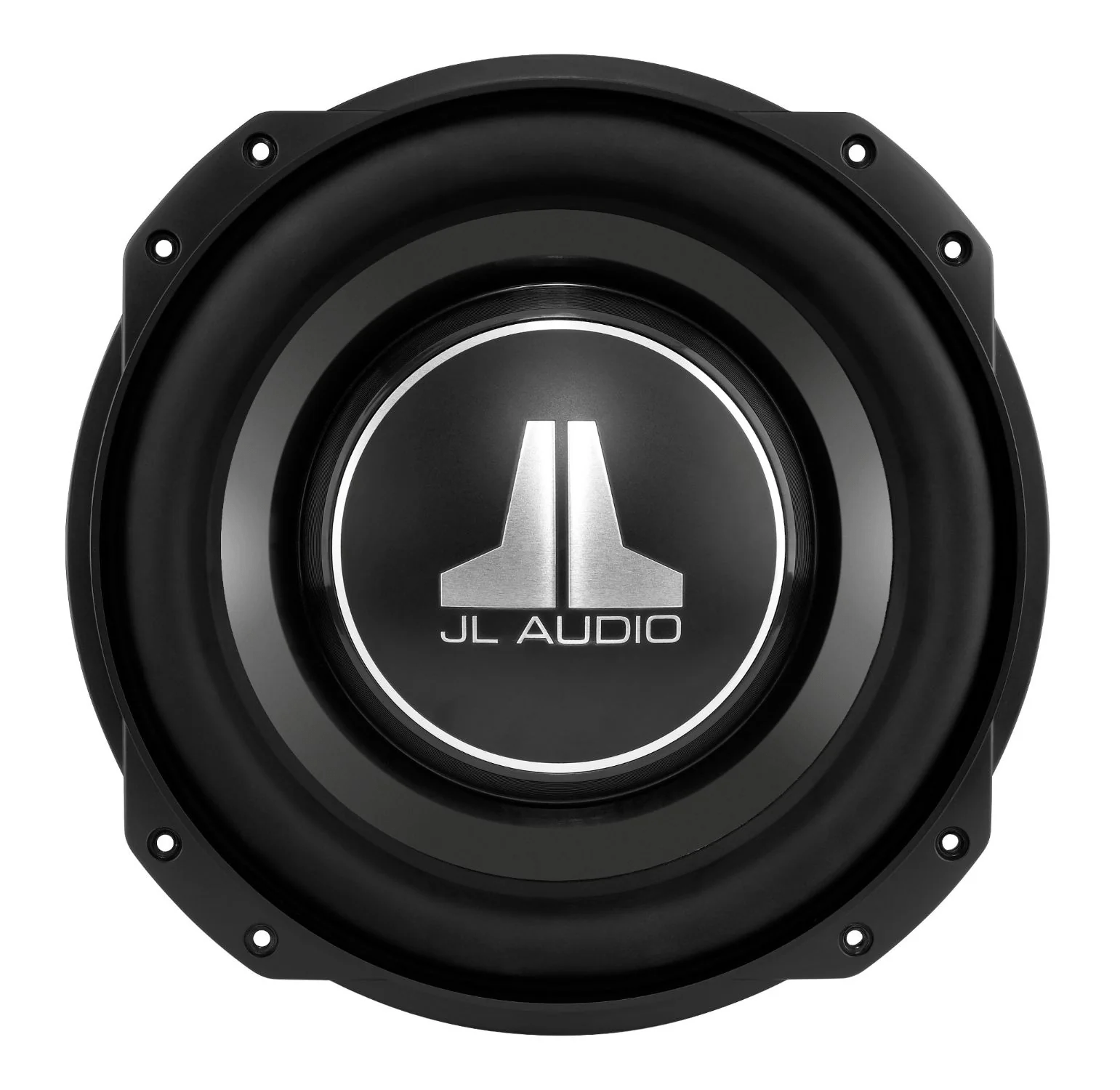

JL Audio 10TW3-D8 10" Thin-Line Dual Voice Coil Subwoofer - 8 Ohm

JL Audio 10TW3-D8 10" Thin-Line Dual Voice Coil Subwoofer - 8 Ohm

$499.99
Available for Shipping Only
Earn 499 Car Toys Points
Car Toys Points Program
Become a member and earn points & exclusive rewards every time you shop. Redeemable online only.
Installation Service
Available at all Car Toys locations
Our certified installers are true automotive enthusiasts. Their work is their passion and for jobs big or small, simple or complex, there's no better way to go.
JL Audio 10TW3-D8 10" Thin-Line Dual Voice Coil Subwoofer - 8 Ohm-Car Toys
Available for Shipping Only

JL Audio 10TW3-D8 10" Thin-Line Dual Voice Coil Subwoofer - 8 Ohm

$499.99
Earn 499 Car Toys Points
Car Toys Points Program
Become a member and earn points & exclusive rewards every time you shop. Redeemable online only.

Overview

About This Product

Description

JL Audio 10TW3-D8 10" Thin-Line Dual Voice Coil Subwoofer - 8 Ohm

Building on the core technology of our TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s. To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs. TW3’s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing Subwoofers. Deep, powerful and accurate JL Audio bass is now possible in more applications than ever. Features
Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Rubber surround
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components General Specifications
Power Graph
Continuous Power Handling (RMS): 400 W
Recommended Amplifier Power (RMS): 200 - 400 W
Nominal Impedance (Znom): Dual 8 Ω Physical Specifications
Dimensions
Nominal Diameter: 10 in / 250 mm
Overall Diameter (A): A1: 11.2 in / 284 mm
A2: 10.5 in / 267 mm
Mounting Hole Diameter (B): 9.625 in / 244 mm
Bolt Hole Circle Diameter (C): 10.5 in / 267 mm
Motor Outer Diameter (D): 5.1 in / 130 mm
Mounting Depth (E): 3.25 in / 83 mm
Driver Displacement: 0.019 cu ft / 0.54 L
Net Weight: 10.1 lb / 4.6 kg Parameters
Free Air Resonance (Fs): 39.262 Hz
Electrical “Q” (Qes): 0.825
Mechanical “Q” (Qms): 9.84
Total Speaker “Q” (Qts): 0.761
Equivalent Compliance (Vas): 0.510 cu ft / 14.44 L
One-Way Linear Excursion (Xmax)*: 0.6 in / 15.2 mm
Reference Efficiency (no): 0.23%
Efficiency (1 W / 1 m)**: 82.27 dB SPL
Effective Piston Area (Sd): 56.532 sq in / 0.0365 sq m
DC Resistance (Re)***: 15.008 Ω * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same. Sealed Enclosure Specifications
Sealed Dimensions
Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 0.75 in / 19 mm
Volume (net int.): 0.575 cu ft / 16.3 L
External Width (W): 16.75 in / 425 mm
External Height (H): 15 in / 381 mm
External Depth (D): 6.5 in / 165 mm
F3: 41.61 Hz
Fc: 53.93 Hz
Qtc: 1.0453 Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice. Ported Enclosure Specifications
Ported Dimensions
Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 0.75 in / 19 mm
Volume (net int.): 0.75 cu ft / 21.2 L
External Width (W): 30 in / 762 mm
External Height (H): 16.375 in / 416 mm
External Depth (D): 5.25 in / 133 mm
Internal Slot Port Width (SW): 3.75 in / 95 mm
Internal Slot Port Height (SH): 2.125 in / 54 mm
Internal Slot Port Length (SL): 26.8125 in / 681 mm
Port Extension Length (PL): 25 in / 635 mm
Tuning Frequency (Fb): 31.33 Hz
F3: 29.54 Hz Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice. Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity. When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
  • 400 Watts RMS
  • Very Shallow Mounting Depth
  • Very Small Sealed Enclosure Volume Required
