You’ve waited long enough. Get the car stereo of your dreams with savings on receivers, speakers, amps, and subs.
Brand Focal
SKU:  ES165KX3E
(0 Reviews)

Focal ES 165 KX3E 6.5” 3-Way Component Speaker System with FRAK Tweeters

Brand Focal
SKU:  ES165KX3E
(0 Reviews)

Focal ES 165 KX3E 6.5” 3-Way Component Speaker System with FRAK Tweeters

$2,760.00
Available in Store
Installation Service
Available at all Car Toys locations
Our certified installers are true automotive enthusiasts. Their work is their passion and for jobs big or small, simple or complex, there's no better way to go..
Focal ES 165 KX3E 6.5” 3-Way Component Speaker System with FRAK Tweeters
Brand Focal
SKU:  ES165KX3E
(0 Reviews)
Available in Store

Focal ES 165 KX3E 6.5” 3-Way Component Speaker System with FRAK Tweeters


Overview

About This Product

Description

Focal ES 165 KX3E 6.5” 3-Way Component Speaker System with FRAK Tweeters

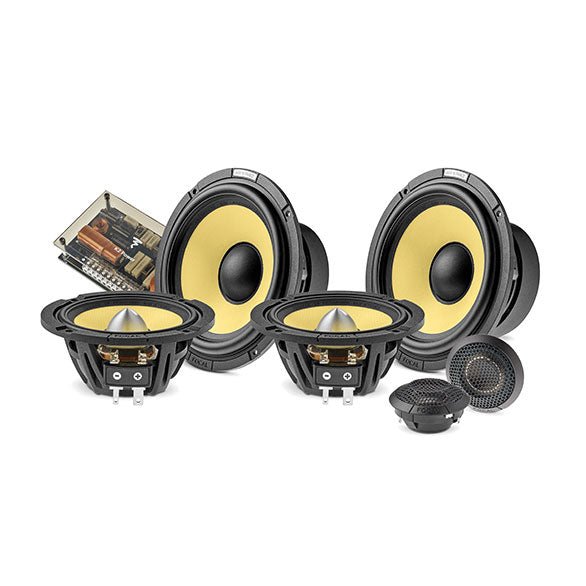

ES 165 KX3E is an in-car audio kit consisting of two 6 1/2” (165mm) woofers and two 3” (80mm) midranges that cover a wide frequency spectrum, from a rich, dynamic midrange to deep, precise bass.

The speaker drivers are fitted with Focal’s iconic K2 cone in aramid fibre, an exclusive, performance-focussed cone for deep, powerful and perfectly defined sound.

For perfect reproduction of the treble and midrange, the kit includes Focal’s FRAK tweeters, made from aluminium/magnesium and with an exclusive ‘M’-shaped profile. They deliver ultra-realistic, crystal-clear sound. Coupled with bi-amplifiable audiophile crossovers and angled brackets, the tweeters will fit seamlessly into the passenger compartment, for perfect in-car sound immersion.

K2 Sandwich Cone
The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get.

TMD® Surround
The speaker drivers benefit from TMD (Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic.

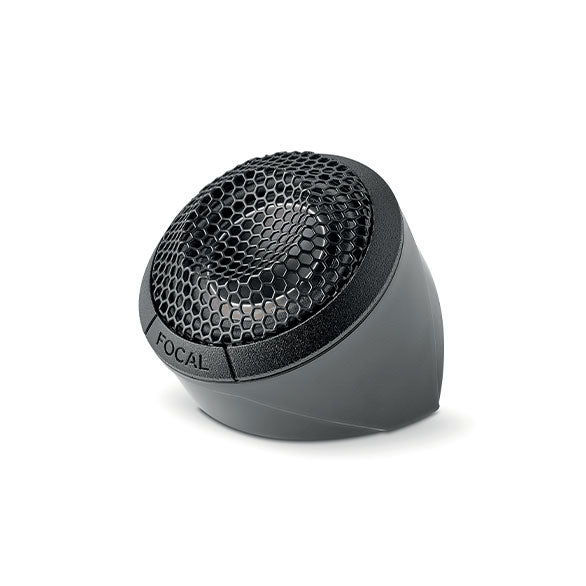

FRAK Tweeter
The ES 165 KX2E and ES 165 KX3E kits are equipped with Focal's ‘M’-shaped FRAK tweeter. A revolution in Car Audio, it combines aluminium and magnesium for good frequency lowering and superb damping. Its lightness helps it shine in the high treble.

More Linearity and Precision
The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound.

Increased SPL
The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound.

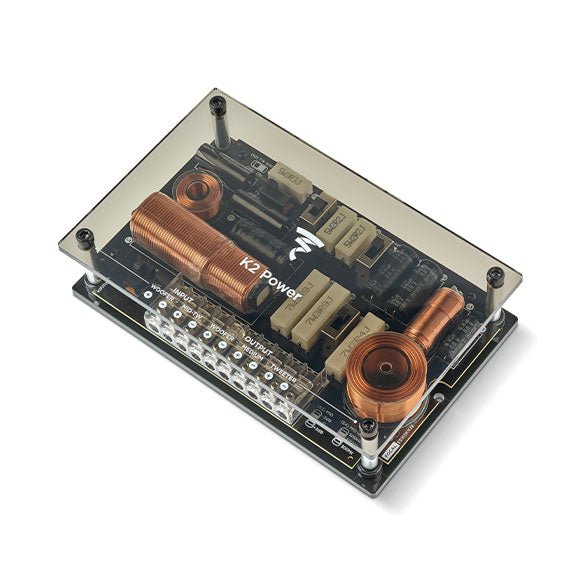

Optimised Crossovers
All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently.

Slim Profile
The ES 165 K2S and SUB 25 KXS kits have a shallow depth. This slim profile takes up minimal space whilst maintaining exceptional power handling.

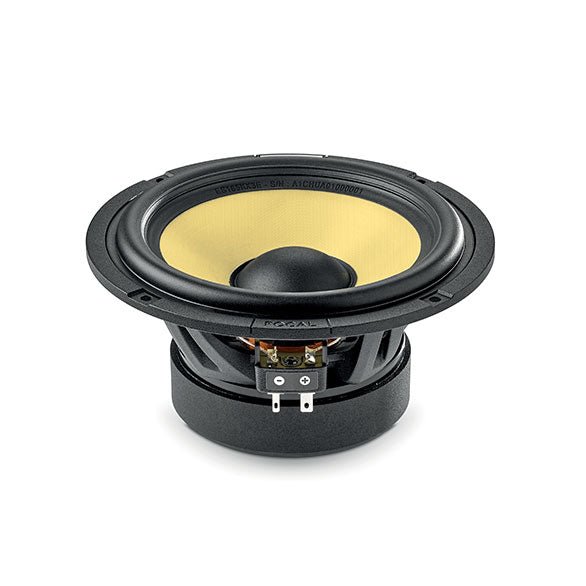

Specifications - Woofer 6.5"
Nominal power: 120W
Maximum power: 240W
Sensitivity (2.83V/1m): 93dB
Cone: K2 Sandwich
Nom. impedance: 4Ω
Surround: Butyl
DC resistance: 3.2Ω
VC diameter: 40mm 15/8"
Former: Kapton
Layers: 2
Wire: CCWA
Magnet (dxh): 100x22mm 4x7/8"
Net weight: 1,750g 3.85lbs

Parameters
Rdc: 3.2Ω
Fs: 54Hz
Mms: 16.5g
Cms: 0.53mm/N
Vas: 13l
Qts: 0.48
Qes: 0.53
Qms: 5
Bxl: 5.8 N/A
Sd: 128.6cm2
SPL: 89dB
Xmax: 5.3mm

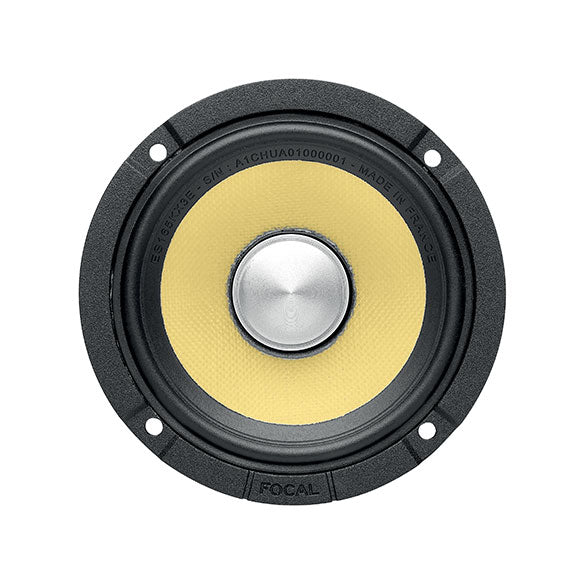

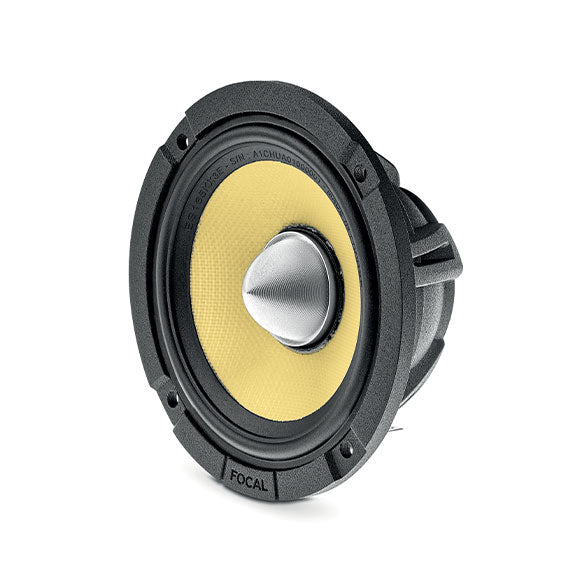

Specifications - Midrange 3"
Nominal power: 50W
Maximum power: 100W
Sensitivity (2.83V/1m): 88dB
Cone: K2 Sandwich
Nom. impedance 4Ω
Surround: Butyl
DC resistance: 3.2Ω
VC diameter: 20mm 3/4"
Former: Kapton
Layers: 2
Wire: CCWA
Net weight: 185g 0.40lbs

Parameters
Rdc: 3.2Ω
Fs: 190Hz
Mms: 3g
Cms: 0.2mm/N
Vas: 0.3l
Qts: 0.69
Qes: 0.92
Qms: 2.6
Bxl: 3.7 N/A
Sd: 35cm2
SPL: 86dB
Xmax: 2.3mm

Specifications - FRAK Tweeter
Nominal power: 25W
Maximum power: 150W
Sensitivity: 91dB
Nom. impedance: 4Ω
Frequency response: 600Hz-32KHz
Cone: Aluminium/Magnesium M-profile
Surround: TMD®
VC diameter: 25mm 1"
Net weight: 85g

Parameters
Impedance: 3.2Ω
Fs 180Hz

  • K2 Aramid Fibre Sandwich Woofer Cone
  • Tuned Mass Damper Rubber Surround
  • FRAK Inverted Dome Tweeter
