Focal ES 165 KE 6.5" 2-Way Component Speaker System

Focal ES 165 KE 6.5" 2-Way Component Speaker System

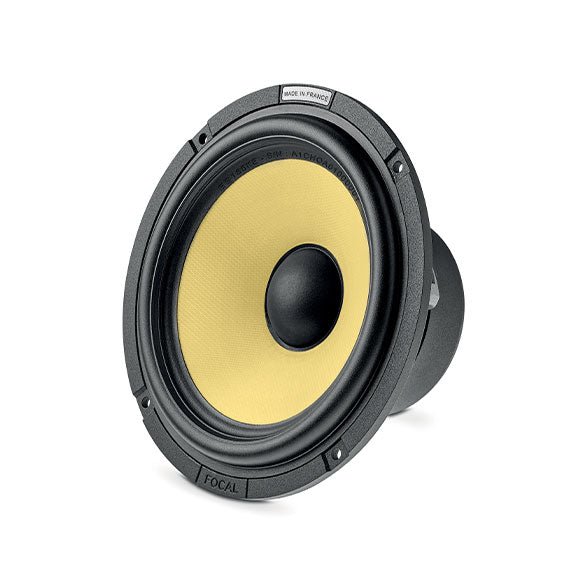

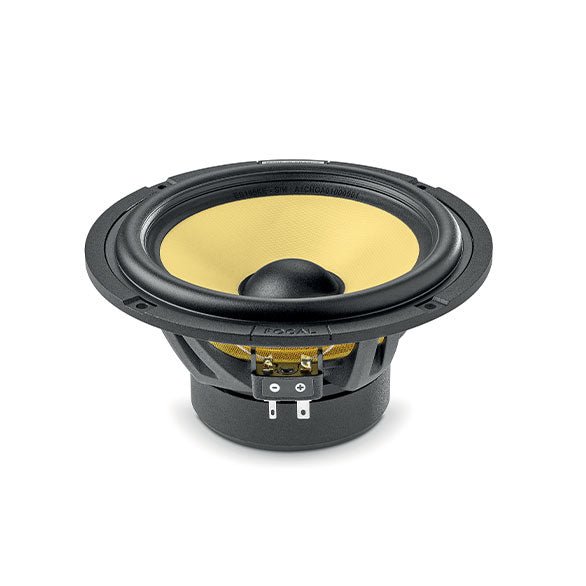

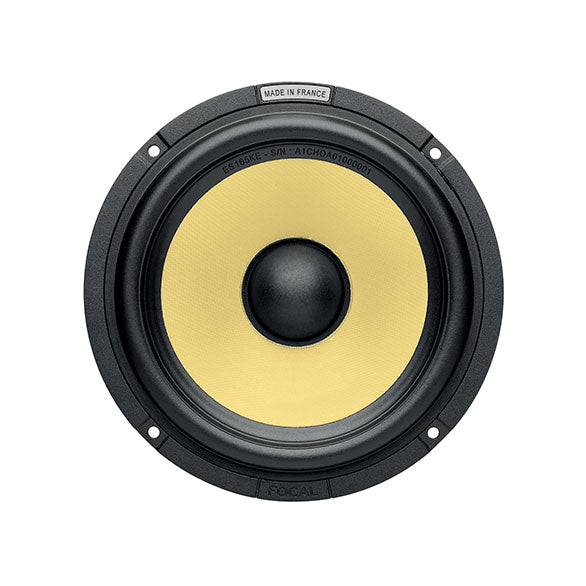

Composed of two 6 1/2” (165mm) woofers and two TKME tweeters, the ES 165 KE kit is a compact, easy-to-install system. The speaker drivers’ K2 cones diffuse super dynamic, razor-sharp sound. Born from Focal’s expertise in all things acoustic, they combine the assets of lightness, rigidity and damping, all prerequisites of a good speaker driver. The inverted dome TKME tweeters also feature an aramid fibre dome. Their exclusive ‘M’-shaped profile helps to improve control of cone deformation and to reproduce the high frequencies smoothly and accurately. The tweeters can be mounted in different ways: in the factory locations, flush or on angled brackets, for all-encompassing installation options. The kit is supplied with aluminium grilles. K2 Sandwich Cone
The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get. TMD® Surround
The speaker drivers benefit from TMD (Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic. TKME Tweeter
The ‘M’-profile TKME tweeter extends the frequency response to 22 kHz with an even greater reduction of distortion, for smooth and precise diffusion in the high treble. Coupled with a ‘push-pull’ motor, based on IAL2 technology, it achieves very low resonance frequencies for perfect harmonic balance. More Linearity and Precision
The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound. Increased SPL
The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound. Optimised Crossovers

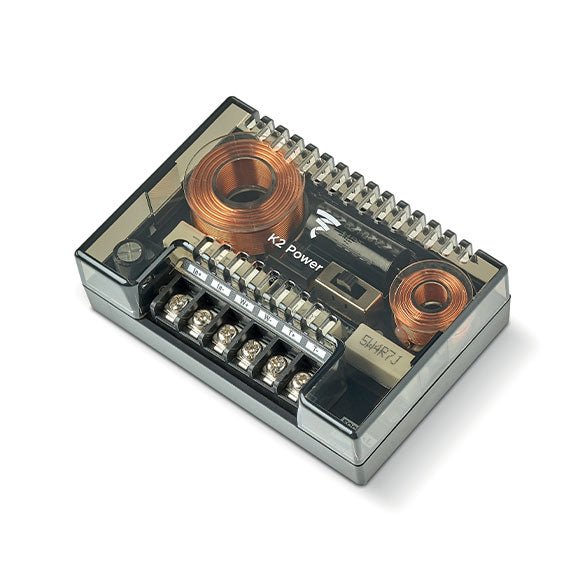

All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently. Slim Profile
The ES 165 K2S and SUB 25 KXS kits have a shallow depth. This slim profile takes up minimal space whilst maintaining exceptional power handling. Specifications - Woofer 6.5"
Nominal power: 100W
Maximum power: 200W
Sensitivity (2.83V/1m): 90.8dB
Cone: K2 Sandwich
Nom. impedance: 4Ω
Surround: Butyl
DC resistance: 3.2Ω
VC diameter: 32mm 1 1/4"
Former: Kapton
Layers: 2
Wire: CCAW
Magnet (dxh): 90x20mm 31/2x3/4"
Net weight: 1350g 3 lbs Parameters
Rdc: 3.2Ω
Fs: 64Hz
Mms 14.5g
Cms 0.41mm/N
Vas 10l
Qts 0.62
Qes 0.69
Qms 5.7
Bxl 5.2 N/A
Sd 128.6cm2
SPL 89dB
Xmax 4.5mm
