Pioneer TS-D65F 6.5 Inch Coaxial Speaker System


Overview

About This Product

Description

Pioneer TS-D65F

6.5" Coaxial Speaker System

  • 26mm Polyester Soft Dome Tweeter with Swivel Capability
  • Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
  • Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality

Overview

D Full Range, Music For All
The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.

Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener.

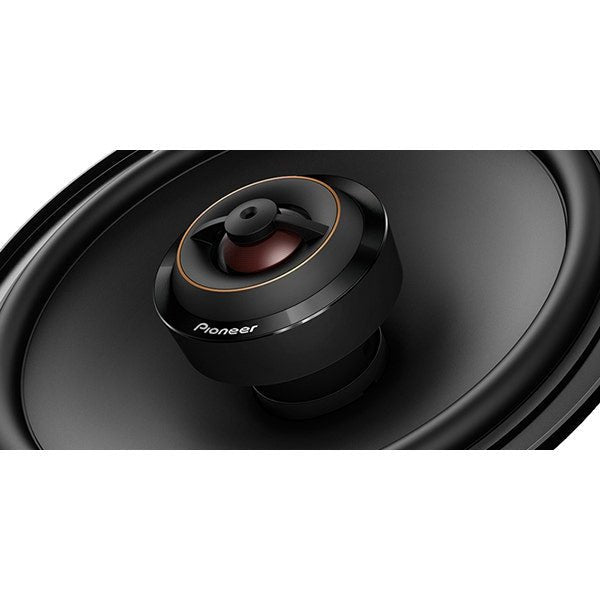

26mm Polyester Soft Dome Tweeter
Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.

Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass.

Specifications

System

  • System Type 2-way Coaxial
  • Sound Pressure Level (Sensitivity) 85dB (+- 1.5dB)
  • Frequency Range 32 Hz to 49 kHz
  • Continuous Power Handling (RMS) 90 Watts
  • Maximum Peak Power Handling 270 Watts
  • Nominal Impedance 4 ohms

Woofer

  • Diameter 6.5”
  • Cone Material Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
  • Surround Material Butyl Rubber
  • Magnet Material Ferrite
  • Magnet Weight 11.3 oz

Tweeter

  • Type Soft Dome
  • Diameter 26mm
  • Diaphragm Material Polyester
  • Magnet Material Neodymium
  • Magnet Weight 6.4 g
  • Swivel Type Yes
  • 26mm Polyester Soft Dome Tweeter with Swivel Capability
  • Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
