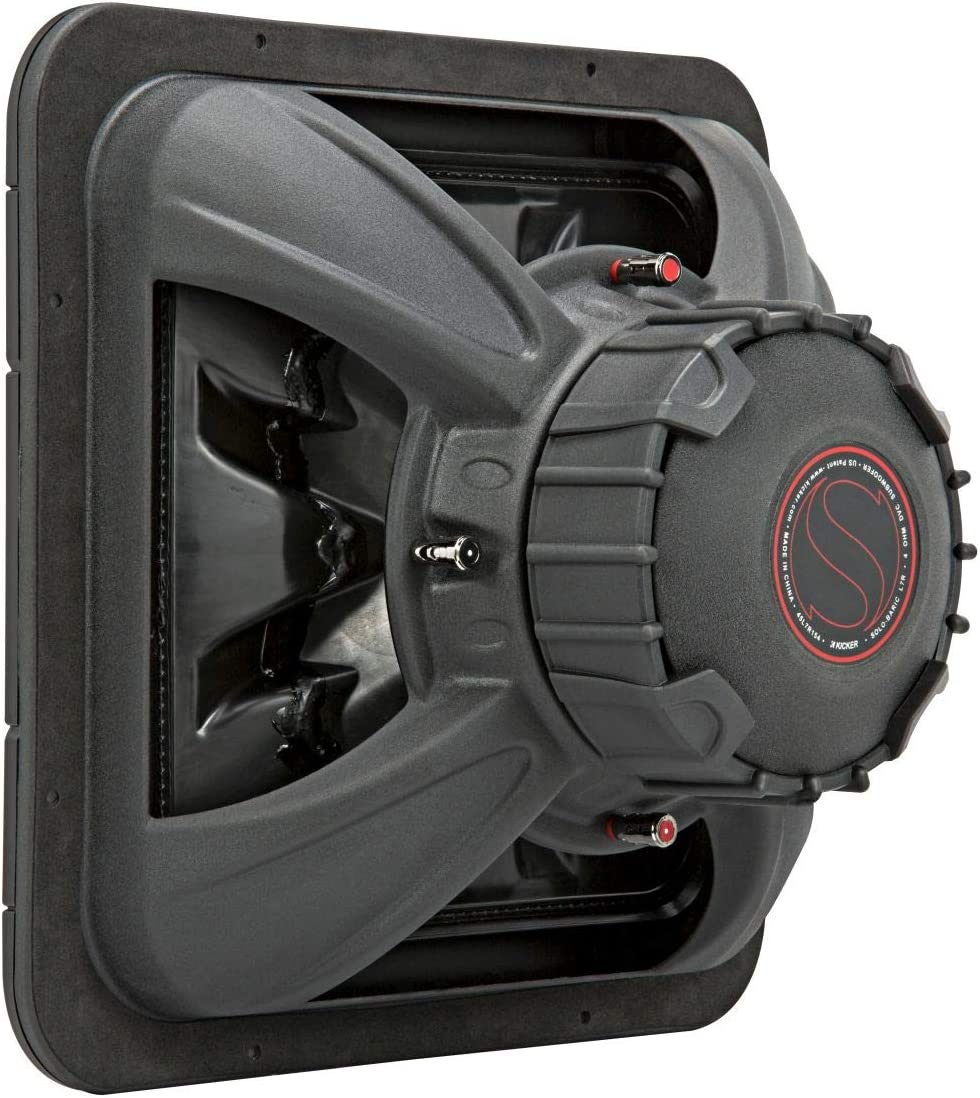

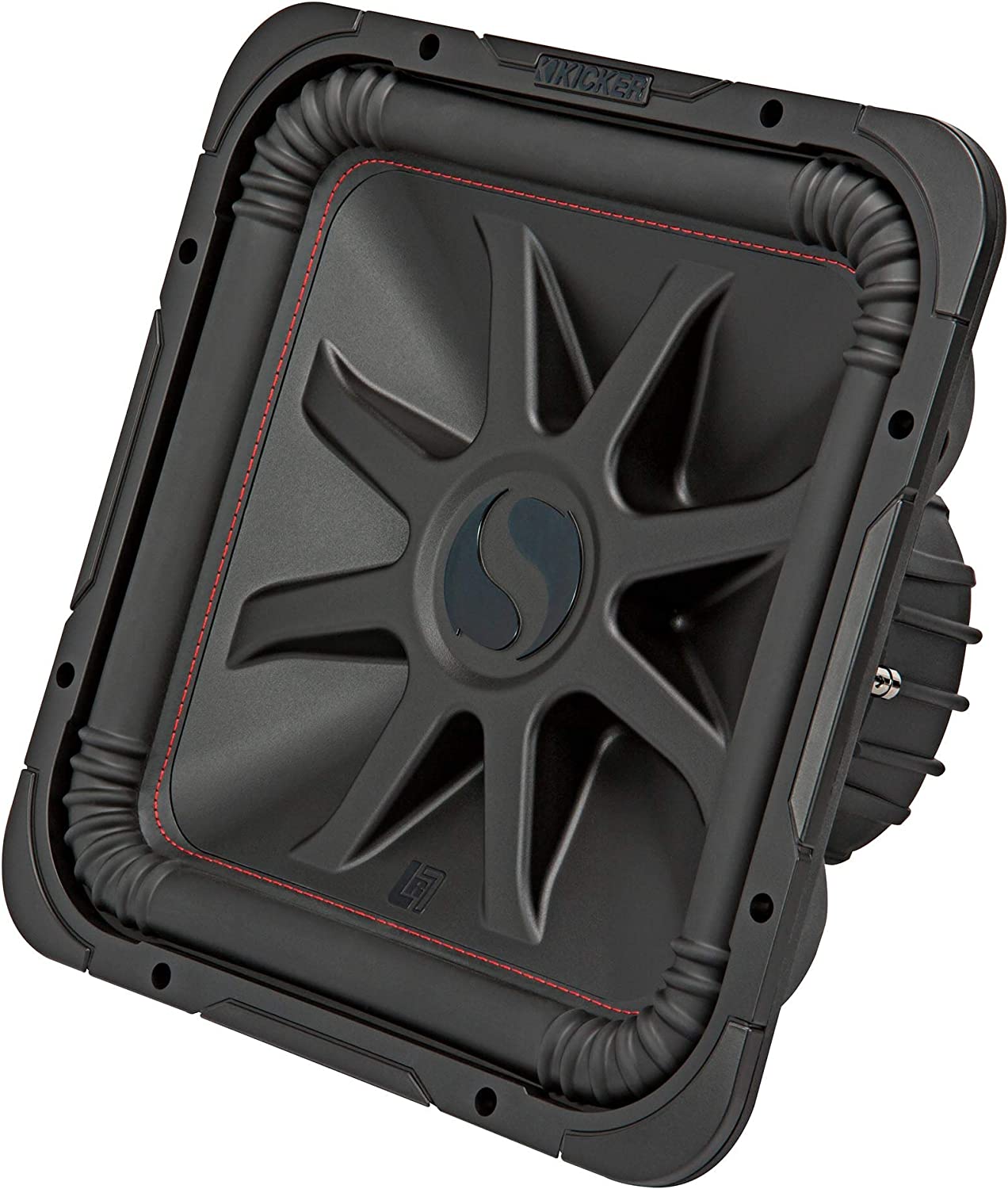

Kicker 45L7R154 L7R Series 15" Solo-Baric Dual Voice Coil Subwoofer - 4 Ohm

Kicker 45L7R154 L7R Series 15" Solo-Baric Subwoofer - 4 Ohm

The L7R Square Sub moves more air, so you get more bass. The design was invented right here in Stillwater, Oklahoma – made to deliver unprecedented efficiency and huge volume! Bigger Bump
The engineers at KICKER invented the original square sub to give you more bass - yet take up no more air space than a standard round sub. Welcome to the miraculous world of the L7R!



Features

• Dual Four-Ohm Voice Coil
• Wrap Around Gasketing
• Patented Ribbed Corners
• Injection-Molded SoloKon™ Woofer
• SoloKon™
• 360-Degree Back Bracing
• UniPlate™ Back Plate And Pole Piece
• Bumped Back Plate
• Thick Tinsel Leads
• Large Ceramic Magnet
• Steel Basket With Spoke Design
• Nickel Plated Speaker Terminals

specifications Thiele/Small Parameters: 45L7R154 T/S Parameters
Product Dimension Sheet: 45L7R15 Dimensions
SIZE [in, cm]: 15, 38
IMPEDANCE [Ohms]: 4 DVC
Recommended Amplifier Power (watts RMS): 900
Peak Power (watts, per ANSI/CTA-2031-A): 1800
SENSITIVITY [dB 1w/1m]: 88.05
MOUNTING DEPTH [in, cm]: 8 -3/8, 21.5
MOUNTING DIAMETER [in, cm]: 13-3/4, 34.9
MIN SEALED BOX VOL [cu. ft, L]: 1.5, 42.48
MAX SEALED BOX VOL [cu. ft, L]: 3, 85
MIN VENTED BOX VOL [cu. ft, L]: 3, 85
MAX VENTED BOX VOL [cu. ft, L]: 6, 170
What's in the Box: 1 - 15" Subwoofer, 1 - install manual, 2 - Kicker stickers
Warranty: When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. -
