Boss Audio BV735BLC 6.2" Media Player with Backup Camera
Audio streaming [A2DP] is an audio protocol of Bluetooth technology. This profile allows for audio to be streamed wirelessly from your compatible device, such as a Smartphone, to the source unit so you can enjoy your favorite music or streaming music service such as Pandora or Spotify, wirelessly.
The Aux Input allows you to connect to the audio output of an external device such as an MP3 Player or Smartphone so you can enjoy your music through your system.
The AV Input allows you to connect to the video and/or audio output of an external device so you can enjoy your audio and video content through your system.

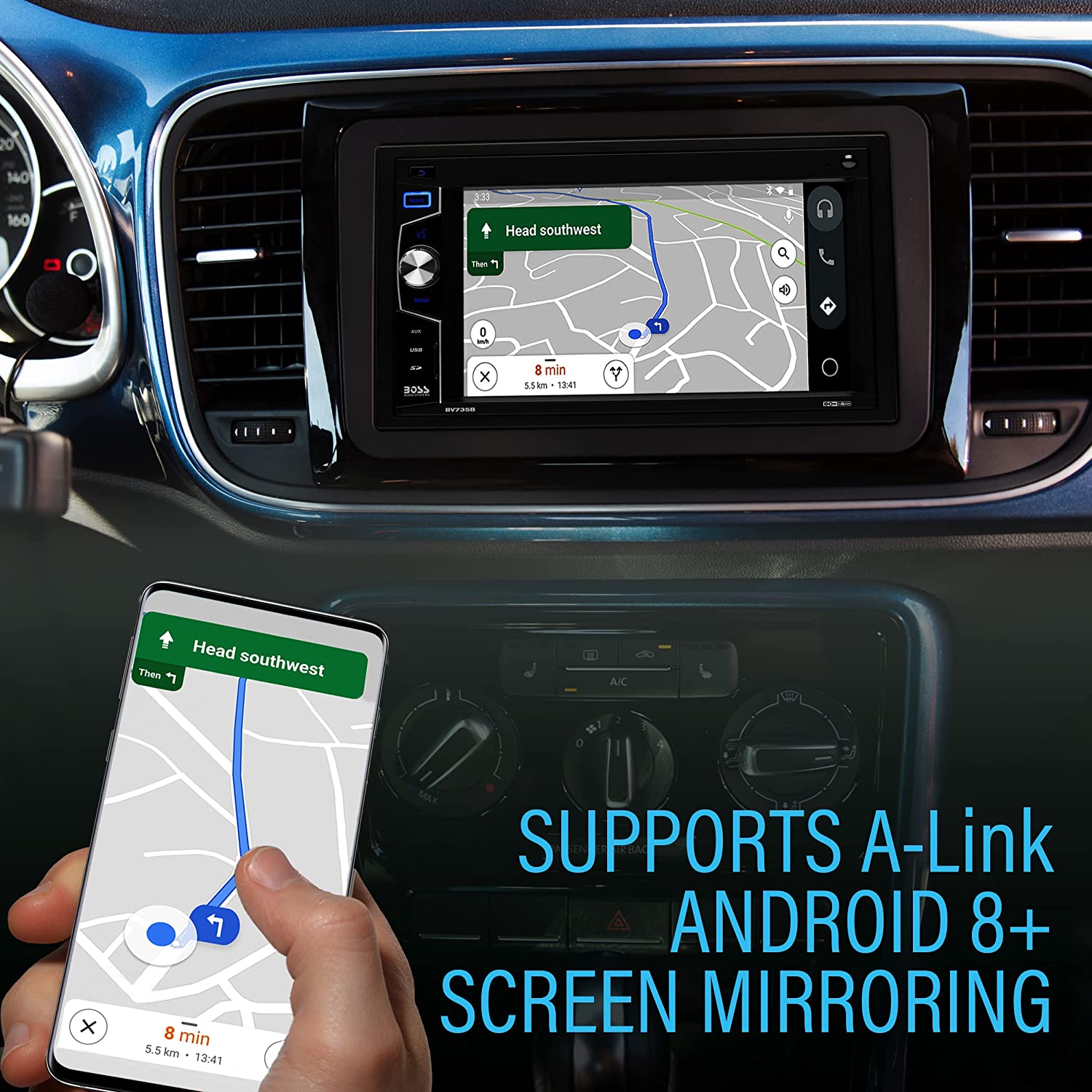

Duplicates the screen of compatible smartphones onto the connected monitor to see Navigation, Movies, Music and Apps on the larger screen.
Allows our Bluetooth equipped source units to make wireless hands-free calls when paired with a Bluetooth equipped Smartphone. Communicate via the built in microphone on most of our units [or external microphone if provided] and listen thru your car’s speakers.
Built-in Preset EQ
The built-in, Preset EQ allows you to chose from preset EQ curves for a variety of music styles such as Rock or POP.
ID3 Tag allows the audio file to store and display additional data such as title, artist, album, track number and more.
No CD Mechanism
Our units without a CD mechanism are ideal for people who take their music with them digitally. These units can play digital media files directly from SD Cards*, USB Flash drives*, and connect with external devices such as your Smartphone thru the Aux input or via Audio Streaming*.
*If equipped. Features vary from model to model.
This units Pre-Amp outputs let you expand your system by adding up to 3 amps and/or signal processors for your Front, rear and subwoofer channels.
The Radio Broadcast Data System (RBDS) is the American equivalent of the Radio Data System (RDS) protocol, provides information on the radio display such as the Call Name of the station, Programing format and allows a broadcaster to send up to a 64-character message that could scroll things like sports scores, song titles, artist or album names, traffic and news across your radio’s display.
Rear Camera Input
The Rear Camera Input is a safety and convenience feature. When you shift your vehicle into reverse, the unit automatically powers on a rear view camera [sold separately] and switches the display to show what the camera sees.
SD Memory Card Port
The SD Memory Card port will support a full size SD memory card to 32 GB and can be used for music playback as well as photo and video viewing (on source units equipped with a monitor). Most units support full size SD cards but there are a few that only accept micro SD cards.
Steering Wheel Controls (SWC)
Our Steering Wheel Control-compatible units allow you to control the functions of the radio from the buttons on your steering wheel (if equipped). This provides convenience and safety by allowing you to keep your hands on the wheel. An additional interface is required and sold separately. We recommend the Metra ASWC.
The selectable tuner function allows you to adjust this radio’s tuner to receive radio broadcasts in either the US or Europe

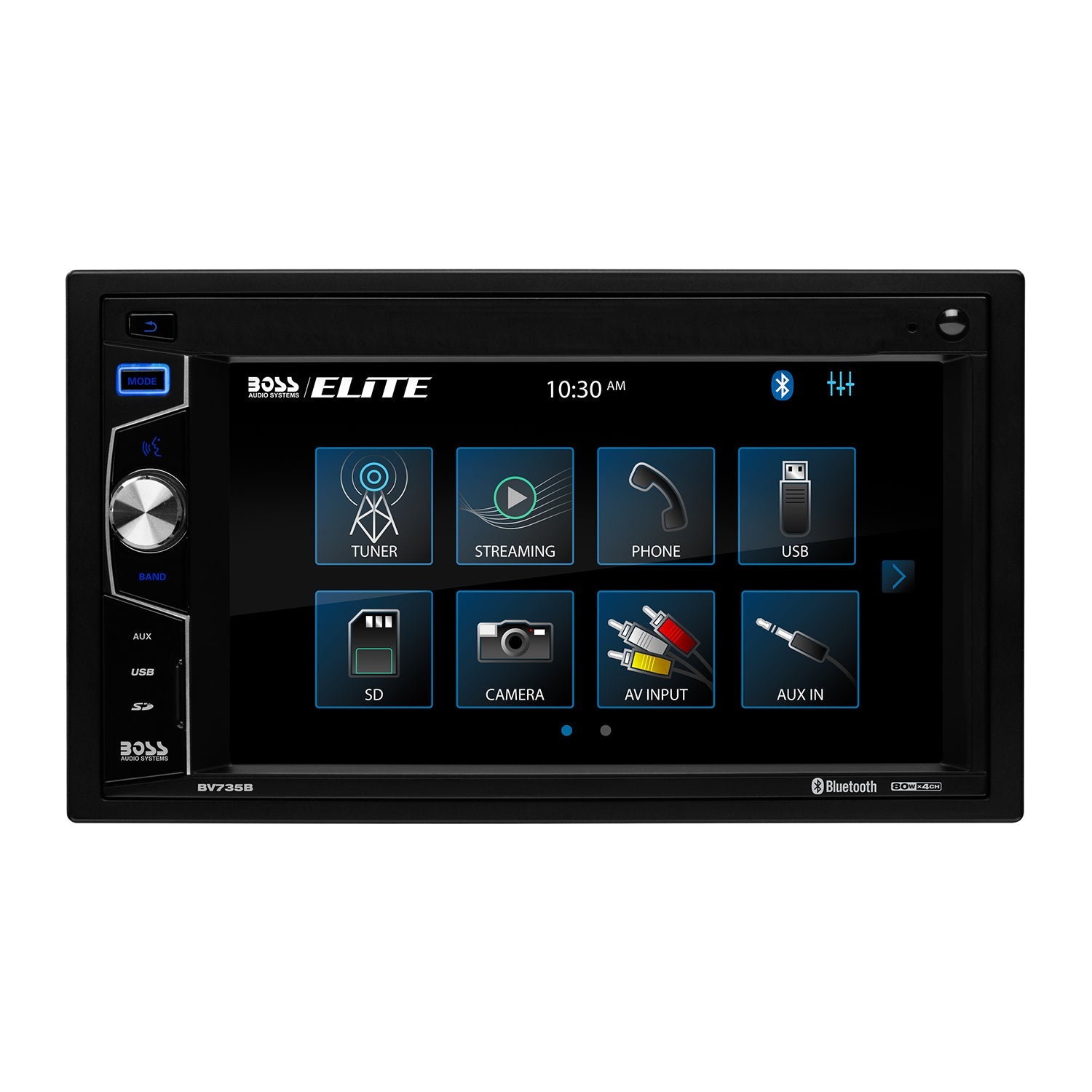

Our touchscreen panels give you access to the unit’s control functions by simply touching the function you want to use

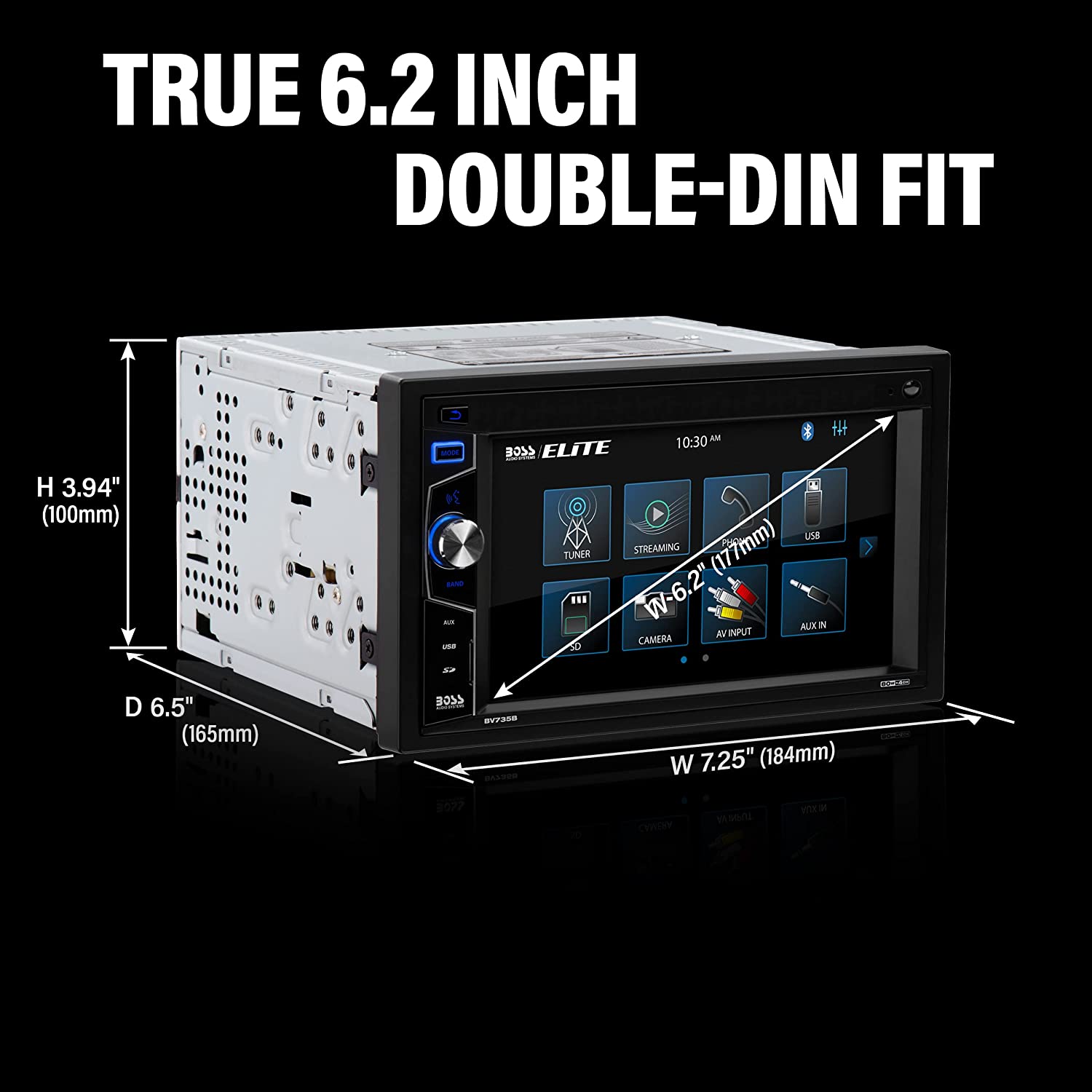

True Double Din
Easier installation and better fit in standard double-din openings. Install Kit, wire harness and other aftermarket install accessories may be required depending on the vehicle
Built-in 1A charger allows you to charge your USB connected device thru this units USB port.
The USB port will support a USB flash drive up to 32 GB and can be used for music playback as well as photo and video viewing (on source units equipped with a monitor). Some units have a mini USB input but come with the adapter to convert to be able to play full size USB drives.
Video RCA Output allows you to connect directly from your source unit to the video input of external monitor(s), such as headrest or overhead monitors. If you plan on using multiple video monitors, we recommend using a video signal amplifier to boost the signal for optimum picture quality.
Wireless Remote Control
A wireless remote control gives you commanding access to the key functions of your unit from the palm of your hand.
MP3 THROUGH: Bluetooth/USB/SD
BLUETOOTH AUDIO STREAMING: Yes
BLUETOOTH HANDS-FREE: Yes
BLUETOOTH SUPPORTED PROFILES: A2DP, AVRCP, HFP
MIRRORING: 1 way Screen Mirroring
Inputs & Outputs
USB PORT: Front panel
SD PORT: Front panel
AUX-IN" Front panel
A/V INPUT: Rear
VIDEO INPUT: 1
REAR CAMERA INPUT: Yes
PRE-AMP OUTPUTS: Front, Rear & Sub
VIDEO OUTPUT: 2
Performance & Controls
TOTAL POWER OUTPUT: 320 Watts (80 Watts x 4 Ch)
LAST POSITION MEMORY: Yes
WIRELESS REMOTE CONTROL: Yes
STEERING WHEEL CONTROL (*INTERFACE NOT INCLUDED): Yes
SCREEN SIZE: 6.2"
RESOLUTION: 800 x 480
SWITCHABLE TUNER FREQUENCIES: USA, EUROPE
RBDS TUNER: Yes
TUNER PRESET: 18 FM / 12 AM
A.M.S. ( AUTO MEMORY SEARCH): Yes
SELECTABLE PRESET EQ: Yes
ID3-TAG INFORMATION: Yes
CLOCK DISPLAY: Yes
CHASSIS TYPE: Double-DIN
Rear View and Front View camera input port
