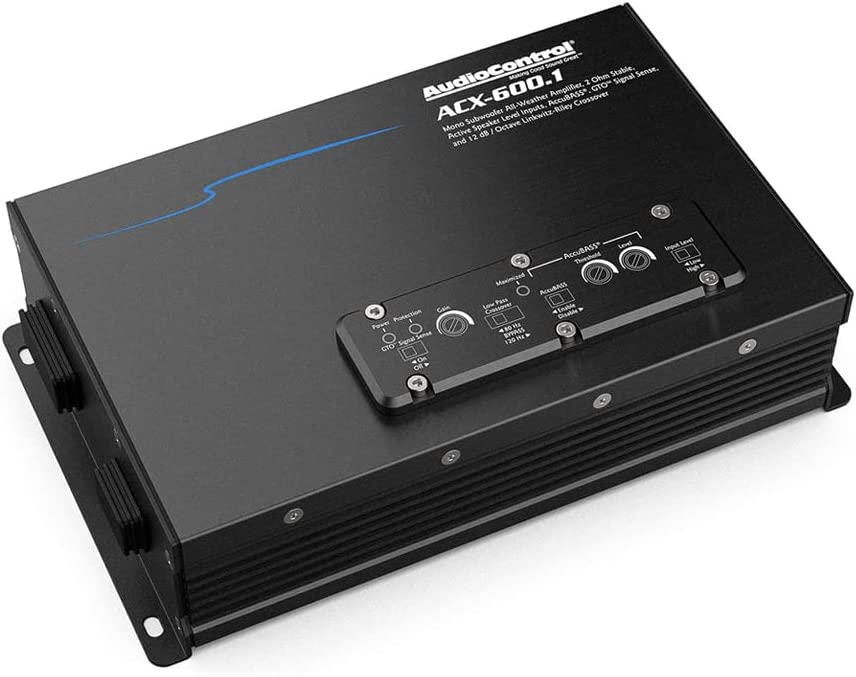

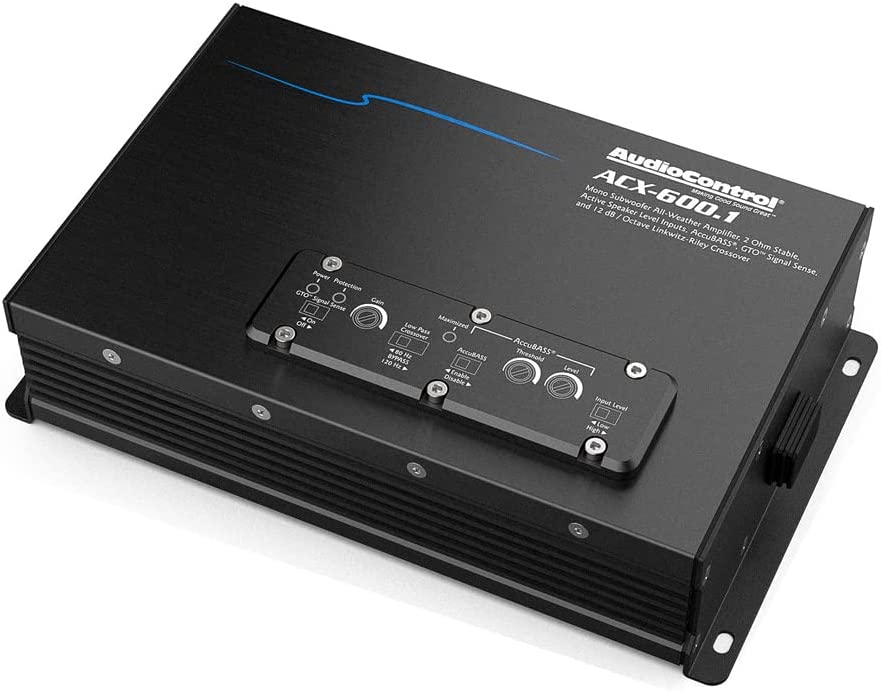

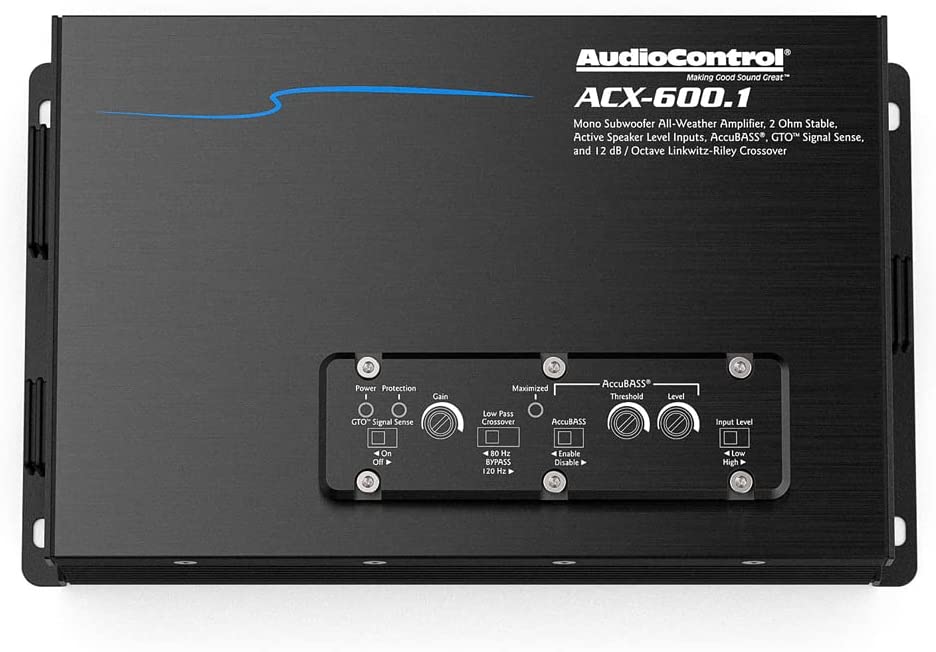

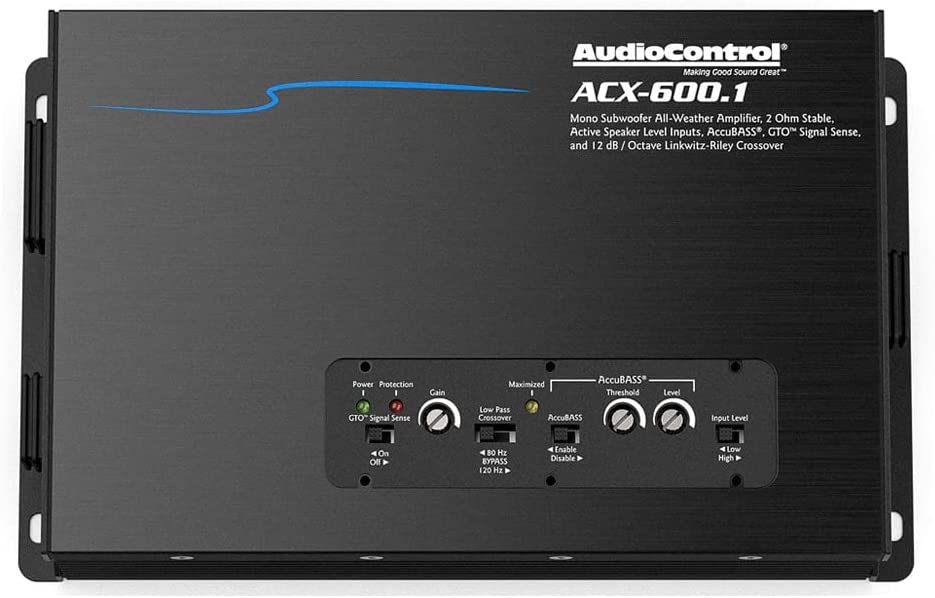

AudioControl ACX-600.1 All-Weather IPX6 Monoblock 600W Marine/ATV/UTV Amplifier

Audio Control ACX-600.1 All Weather Monoblock Amplifier

AudioControl’s ACX-600.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.1 all-weather monoblock amplifier the perfect solution for your next adventure.



Features 1 x 350 watts @ 4 Ohms
1 x 600 Watts @ 2 Ohms
IPX6 Rated
GTOTM Signal Sense
Optional wired ACR-1 Remote Control for Output Level
High and Low Input Modes
Linkwitz-Riley Crossover
Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)



specifications



Inputs
Preamp/Speaker Level Inputs: 2
Input Voltage Low: 500 mV – 6 Vrms
Input Voltage Range High: 1 Vrms – 12 Vrms



Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ohm – 350 W x 1
2 Ohm – 600 W x 1



Performance
Frequency Response: 26 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.05%
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
IP Rating: IPX6



General
Recommended Fuse Rating: 30A



Weights & Dimensions
Dimensions: 8.89″W x 5.31″D x 2.36″H
Weight: 4.45 lbs. (2.02 kg)
