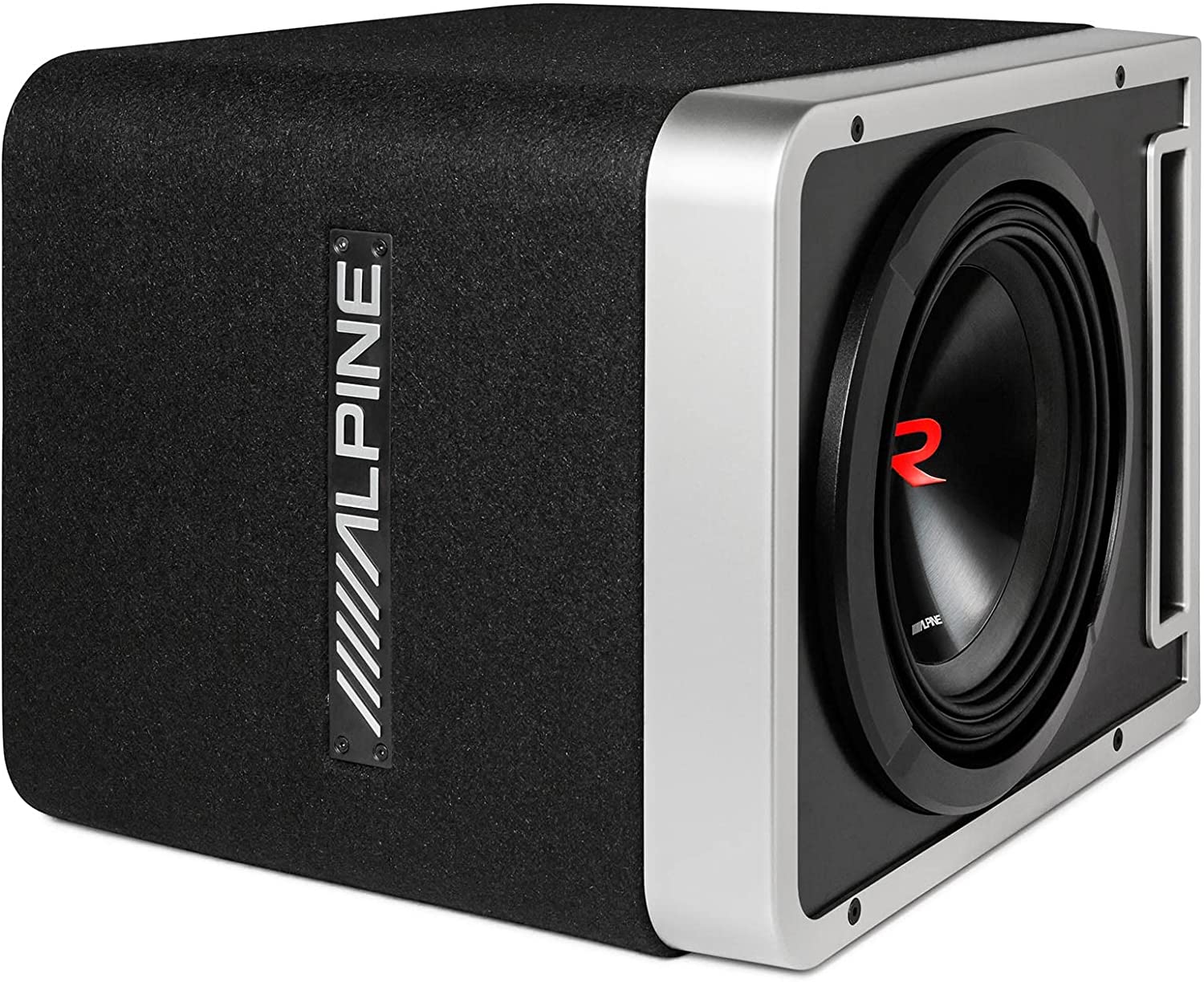

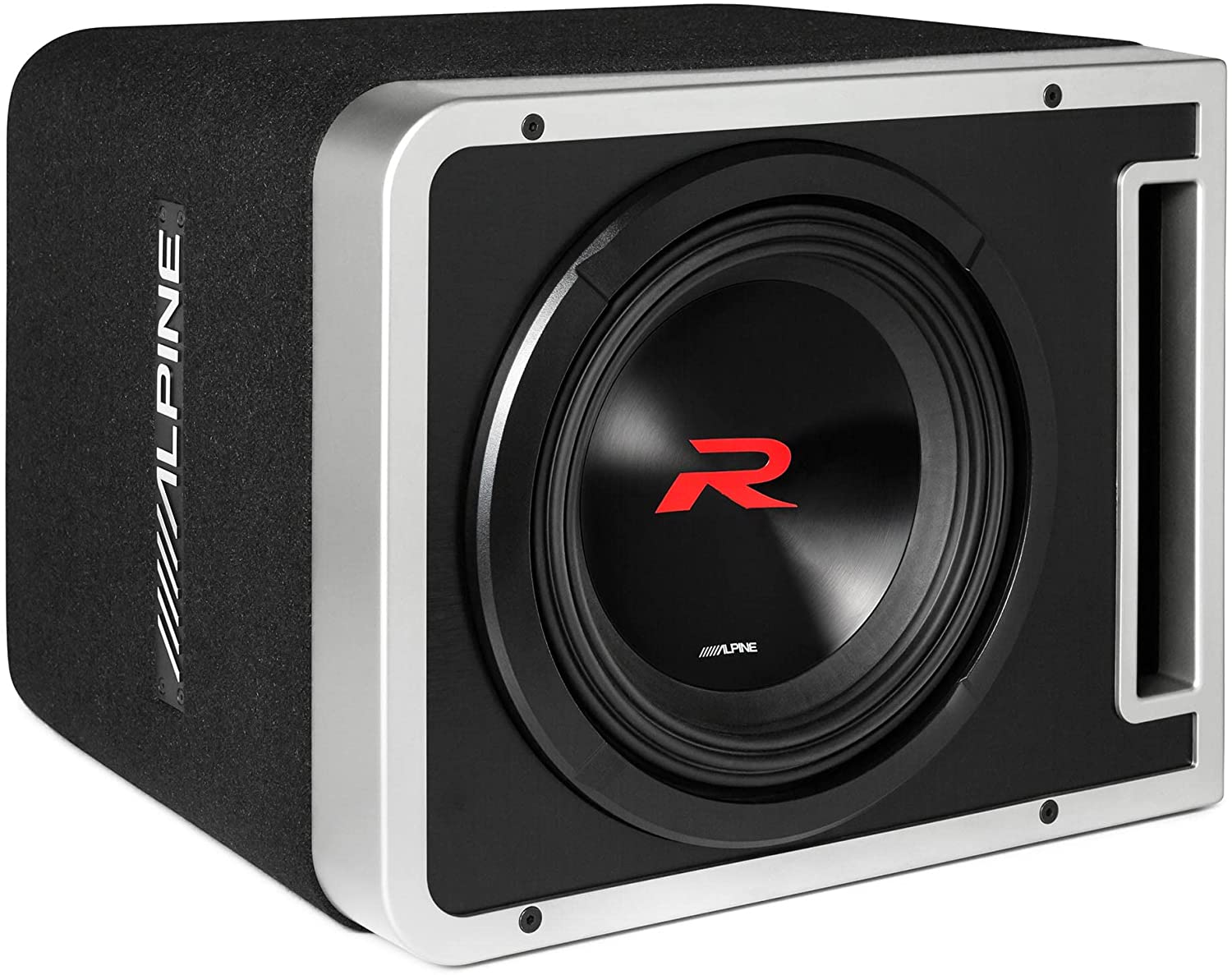

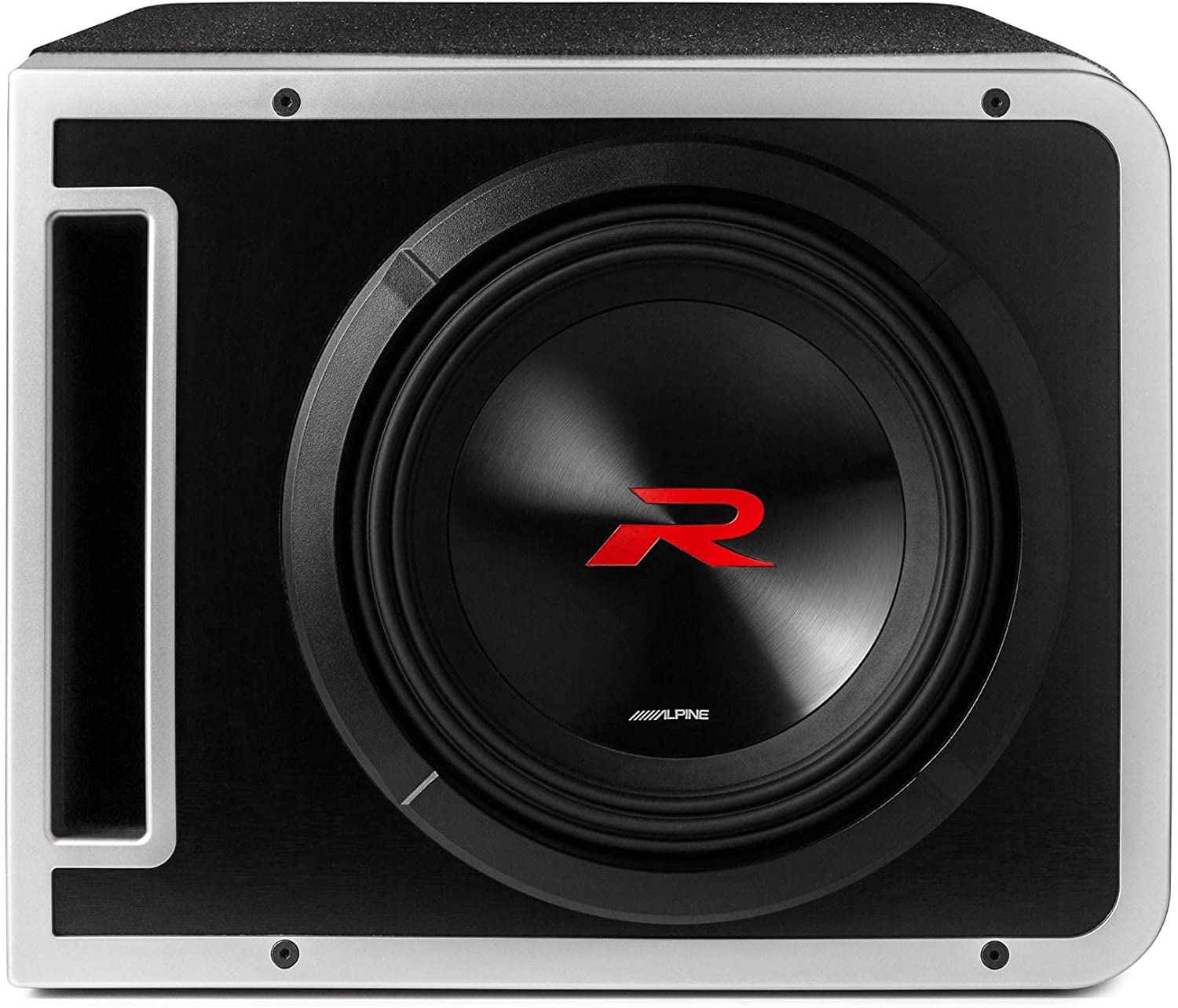

Alpine R2-SB10V R-Series Halo 10" Loaded Subwoofer Enclosure

Alpine R2-SB10V R-Series Halo 10" Loaded Subwoofer Enclosure

Groundbreaking Alpine Halo design with next-generation R-Series Subwoofers for more accurate and authoritative bass.

Features

• Groundbreaking Alpine Halo Design
• 750W RMS Power Handling
• Includes preloaded R-W10D4 10” R-Series subwoofer
• ProLink™ ported enclosure design
• Polypropylene/Ceramic Composite Dust Cap
• Kevlar Reinforced Pulp Cone High-Performance subwoofers
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Large Double-Stacked Magnets
• CARB compliant 3/4-inch MDF construction
• Premium black carpet
• Silver Alpine embossed side logo badge
• Brushed aluminum finished metallic front baffle
• Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)

Unique ProLink Design
When you’re looking to make a noticeable impact in your sound system, you add a subwoofer that will bring out the low ends of your music. But what if you already have a single subwoofer and still crave more bass? You could throw out your single enclosure and purchase a new dual enclosure or you can build your bass with Alpine's new ProLink™ technology.  ProLink™ is unique to Alpine and allows you to link two R-SB10V enclosures together using an optional KTX-H10 Linking Kit (sold separately) to create a dual subwoofer enclosure. Now you have the flexibility in power and price to use a single subwoofer or add another subwoofer when more bass is desired.

Stand Ount in the Crowd
The Alpine Halo platform has a reputation for accessible, premium technology that modernizes the look and feel of any vehicle. Drawing inspiration from the sleek, tapered lines and clean silver finish of the Alpine Halo Display, the R-SB10V shares the same unique, curved edges outlined by a silver trim and a metallic front baffle for a matching system aesthetic.

Specifications

Dimensions: 16” W x 12.6825” H x 14.5” D
Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
12 Gauge OFC Speaker Box Wire

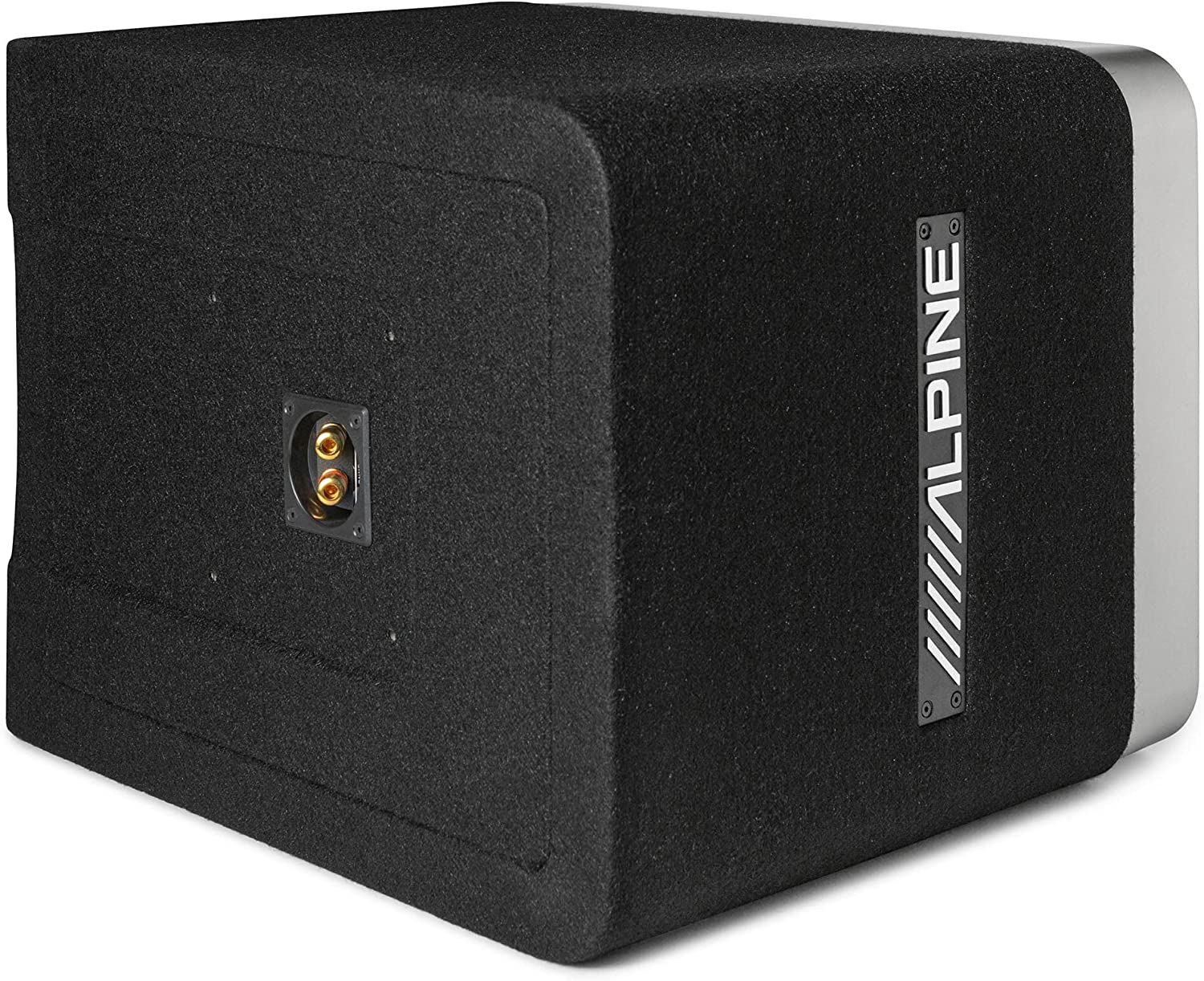

Binding Post Terminal Cup
Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
2Ω Impedance
Frequency Response: 26-200Hz
Vented Enclosure Tuning Frequency: 36Hz
Sensitivity 84dB

What's in the Box

Vented Cabinet with preloaded R2-W10D4 10” R-Series subwoofer
