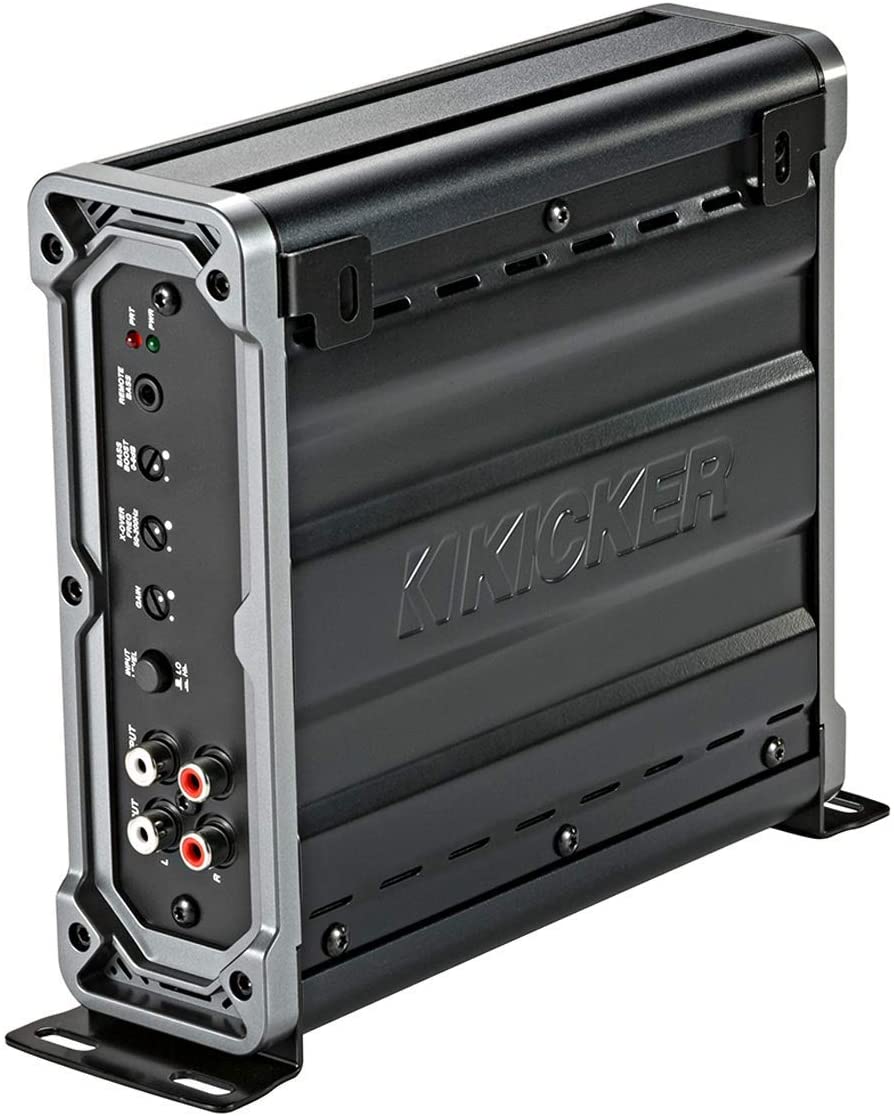

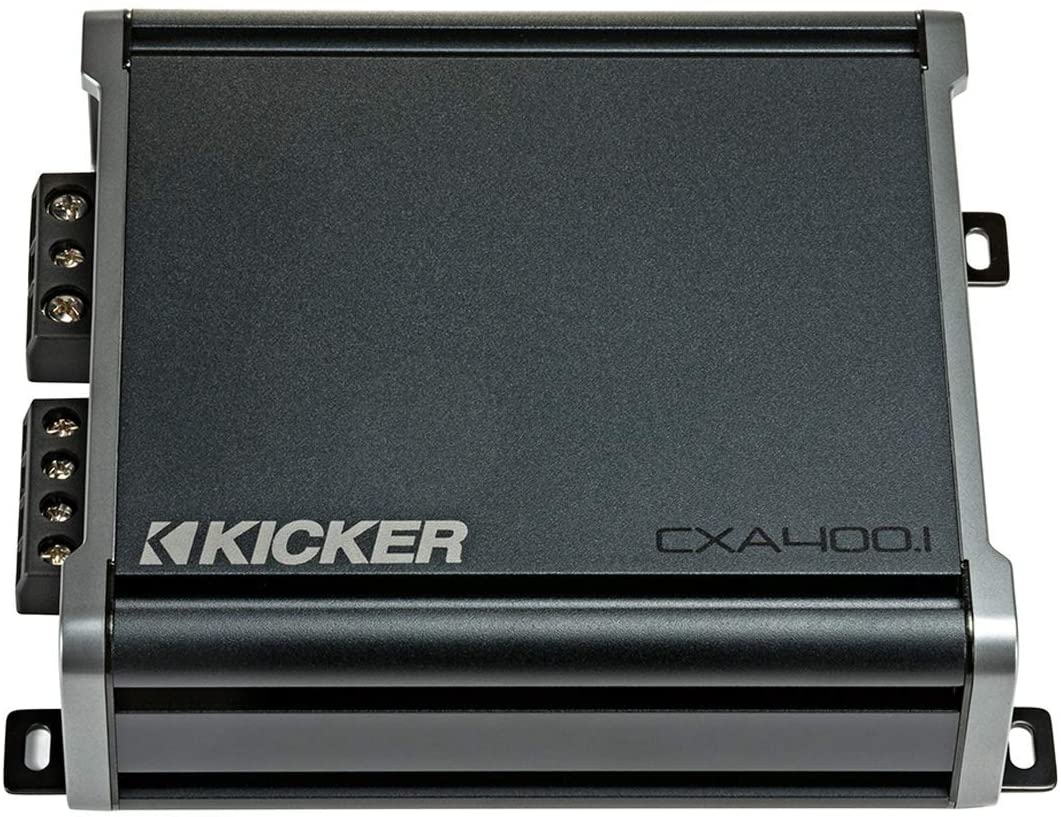

KICKER CX400.1 Mono Subwoofer Amplifier

Kicker CX400.1 Class D Mono Amplifier

CX-Series amps reach massive power levels thanks to an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated look. Mono amps offer an optional remote level control to adjust your bass right from the dash.

Power Pack

CX-Series Mono Amps are now one-ohm stable, giving you even more power and wiring options for your system! Using efficient Class-D power, the CXA400.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system. CX.1 Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time! Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware. CX.1 Amps deliver as much as 400 watts into one bass channel. See below for more details.

Features

Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Compatible with CXARC Remote Bass Control

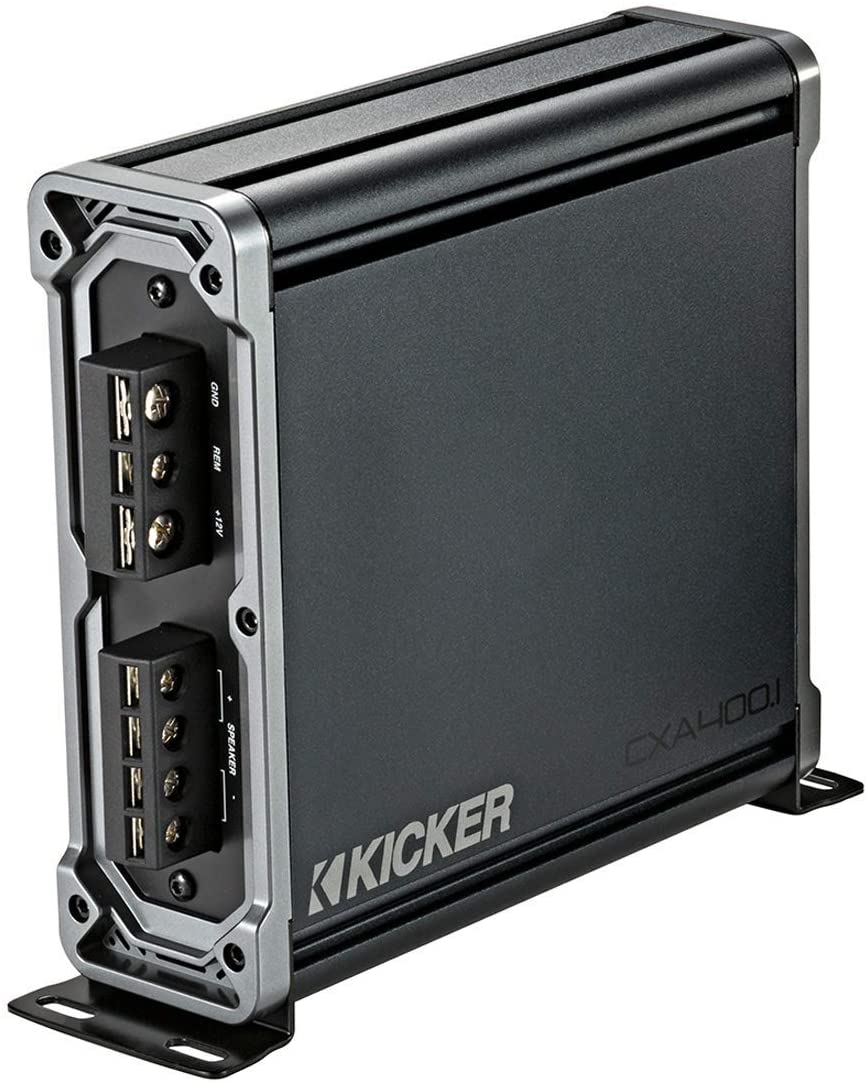

Vertical mounting hardware included for another unique look

Specifications

Power (watts/ch) 4 Ohm: 150x1
Power (watts/ch) 2 Ohm: 300x1
Power (watts/ch) 1 Ohm: 400x1
CXRC Remote Bass Capable (sold sep.): yes
Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L): 8-1/8, 20.6
Frequency Response (Hz): 25-200, +0/-1dB
Input Sensitivity: 125mV–5V (Low Level) 1V–40V (High Level)
Signal-to-Noise Ratio: >95dB, a-weighted, re: rated power
Active Crossover: Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter: 25Hz @24dB/octave
KickEQ™ Boost: Variable 0-6dB @40Hz
