Alpine Dual 10" Subwoofer Bass Package - PPALP3

Alpine Dual 10" Subwoofer Bass Package - PPALP3

Package Includes:

• Two - Alpine W10S4 10" Subwoofer
• One - Alpine S-A60M Mono Digital Amplifier

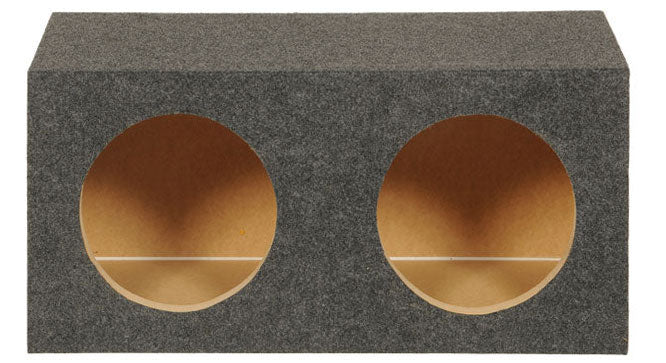

• One -10" Dual Sealed Subwoofer Enclosure

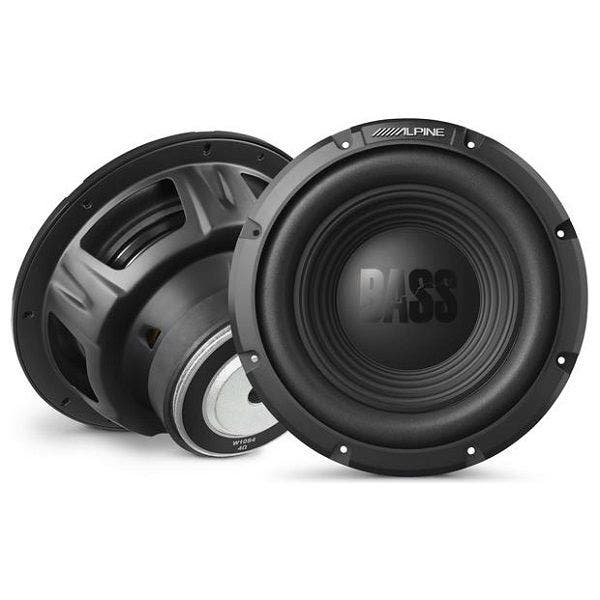

Alpine W10S4 10" Subwoofer (2)

Bass You Can Feel!
Alpine understands the importance of bass for the car audio enthusiast while keeping it budget-friendly at the same time. Overview:

• 10" single 4 Ohm subwoofer
• Polypropylene and mica cone with poly-foam surround
• 250W RMS
• 750W peak power handling
• 24Hz-200Hz frequency response
• 5-1/16-inch mounting depth
• Recommended Sealed box volume: 0.83 cu. Ft.
• Recommended Ported box volume: 1.51 cu. ft

Bass For All
The 2017 BASS subwoofers are engineered to be fun and loud in a budget friendly category by combining retro styling with enough efficiency to run on 250W RMS. Performance: Efficiency - Tight Bass
An optimized magnet circuit allows more focused magnetism in the gap which results in improved efficiency. This means tighter bass control and more output!

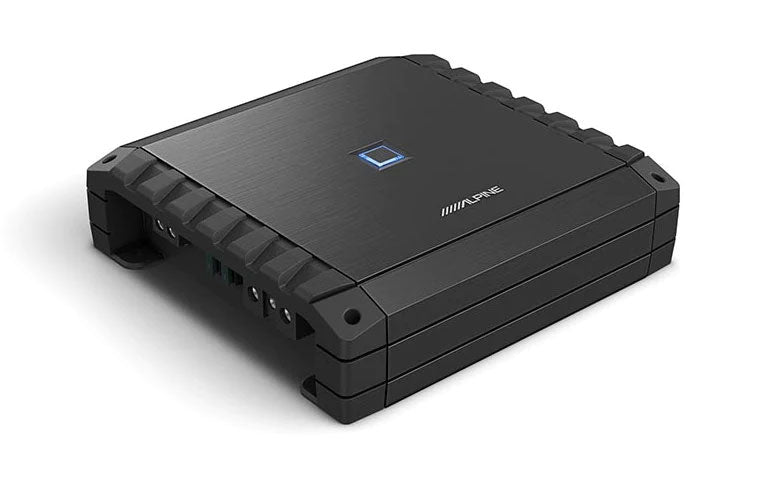

Alpine S2-A60M S-Series Hi-Res Mono Subwoofer Amplifier

Entry-level sound just got elevated with the S2-A60M Mono Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit with 600W of powerful bass performance.
Features

• 600W Mono Power Amplifier
• Alpine’s Class D Amplifier Circuit
• Two-sided Terminal Layout
• Built-in Selectable / Adjustable Crossovers
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

Unparalleled Power
Alpine's S-Series S2-A60M 600W Mono Amplifier is the perfect solution for unparalleled power and performance on a budget. With a power output of 600W at a 1ohm or 2ohm drive, this mono amp is capable of driving even the most demanding subwoofers, delivering clean and distortion-free bass for a wide range of applications. Plus, its compact design makes it easy to install in any vehicle. Flexible Application
New to the Next-Generation S-Series amplifiers is a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system. Easy Control Access
The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier. Optimal Power Matching
With the capacity to deliver 600 watts of power at 1 ohm, the S2-A60M is fully equipped to provide ample power to either a single Alpine S-Series 10" or 12" Subwoofer, or two S-Series 8" Subwoofers, ensuring exceptional sound quality and optimal performance. Specifications

• Dimensions: 8.7” W x 2.25” H x 8.25” D
• Weight: 4 lbs, 13 oz
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 330W RMS x 1 @ 4Ω, 600W RMS x 1 @ 2Ω, 600W RMS x 1 @ 1Ω
• S/N Ratio: > 85dB
• Frequency Response: 10Hz – 400Hz
• Damping Factor: > 1000
• CTA-2006-D Certification

What's in the Box

• (x1) S2-A60M Mono Amplifier
• (x2) Connection end covers w/4 attachment screws
• Owner’s Manual
• “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
• (x4) Self-tapping screws
• (x1) Hexagon wrench
• Alpine Registration Card
• Alpine Limited Warranty Sheet
• Tips sheet for power supply wire connections
