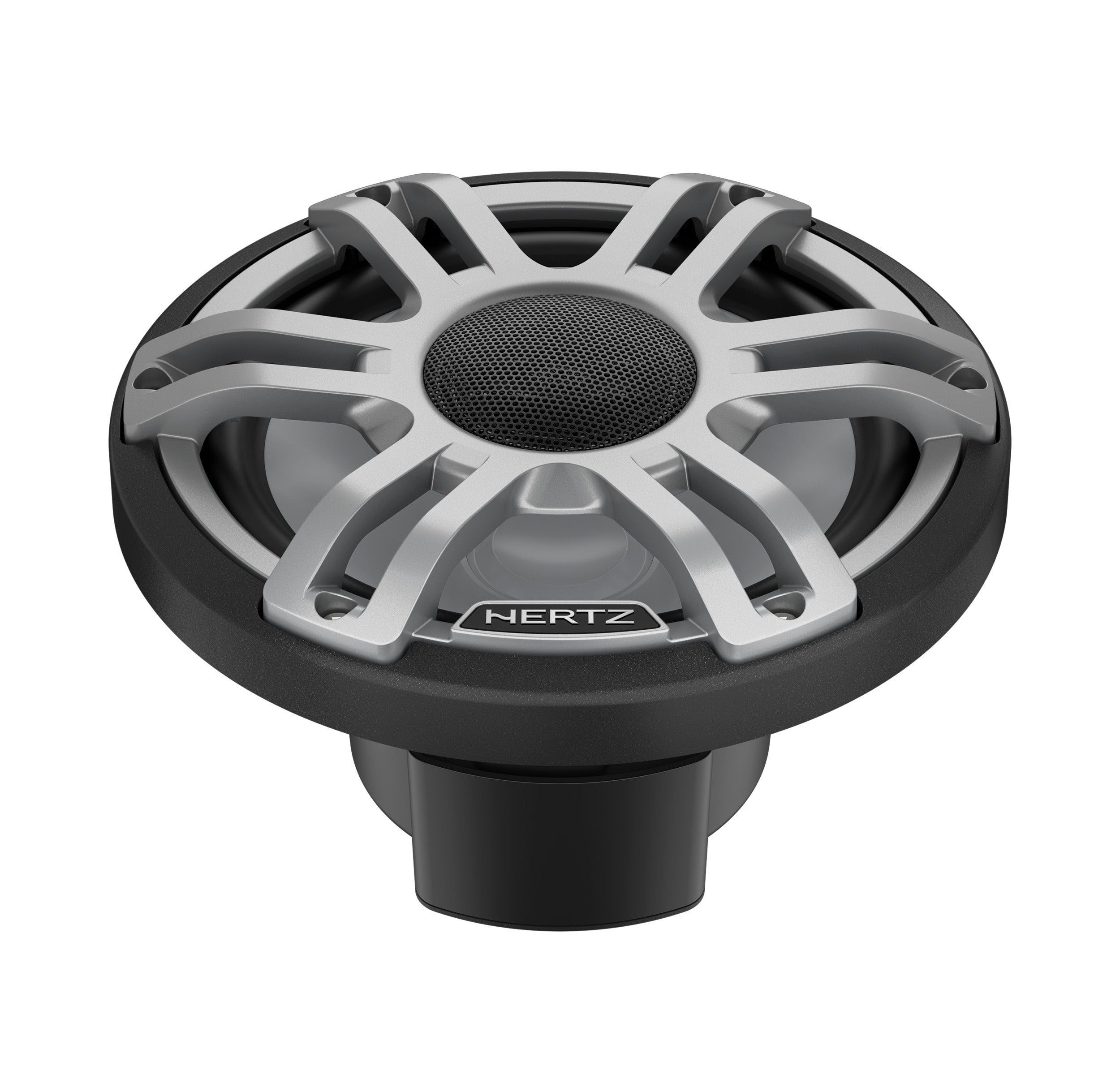

Hertz HMX 7.7 S-LD-G 7.7" Marine Coaxial LED Speakers

Hertz HMX 7.7 S-LD-G 7.7" Marine Coaxial LED Speakers

HMX 7.7 S-LD-G marine coaxial speaker features a sports paintable grille for a perfect match with sporty boats. The coaxial speaker is engineered to operate in open water, pleasing you with the incomparable emotions of music for years on end thanks to the special ASA plastic grilles and polypropylene cone with co-molded Santoprene surround.

The Aramid fiber spider with silicone-insulated lead wire ensures durability and constant performance over time. Parts and assembly methods are designed to meet high-humidity marine environments, ensuring the best audio performance season after season.

Technologies

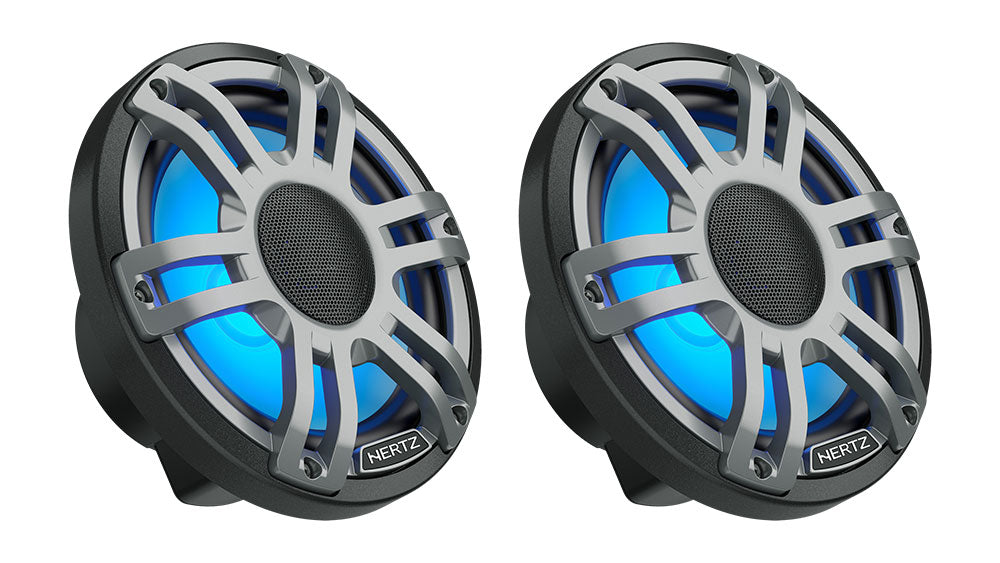

RGB Multicolor
Built-in RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel.

Salt Fog Tested
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

IP Certification
IP65

Water Jet Tested
IP65 speakers define all the Hertz Pure Marine Certified products as totally protected against water jets of different entities, making them highly performant in the marine environment.

UV Resistant
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products are designed to face long time exposition to UV radiations while cruising on the open sea.

Specifications
Size mm (in.): 196 (7.7)
Power Handling - Continuous W: 100
Power Handling - Peak W: 200
Impedance Ohm: 4
Depth mm (in.): 113 (4.4)
Tweeter diaphragm mm (in.): 36 (1.4)
Woofer Voice Coil Ø mm (in.): 32 (1.26)
Tweeter Voice Coil Ø mm (in.): 20 (0.8)
Frequency Response Hz: 45 ÷ 25k
Woofer Magnet size D x d x h mm (in.): 90 x 40 x 20 (3.54 x 1.57 x 0.79)
Tweeter Magnet size D x h mm (in.): 19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.): 1,66 (3.66)
Woofer Magnet: High density flux ferrite
Tweeter Magnet: Neodymium
Cone: Polypropylene with UV inhibitors
Dome: PEI
Xmech mm (in.): ±8,5 (0.33)

Physical Specifications

A: 196 mm: 7.7 in.
B: 158 mm: 6.2 in.
C: 113 mm: 4.4 in
D: 79 mm: 3.1 in.
F: 34 mm: 1.3 in.
