• 800 Watts RMS | 1600 Watts Peak
• Two - CompR 10" Subwoofers
• Front-Facing Port for Improved Bass

• 65 Watts RMS | 195 Watts Peak
• 3/4" PEI Tweeter
• UV-treated Polypropylene Woofer
• IP66 Certified

Kicker 40KMMTES

KMMTES Specifications

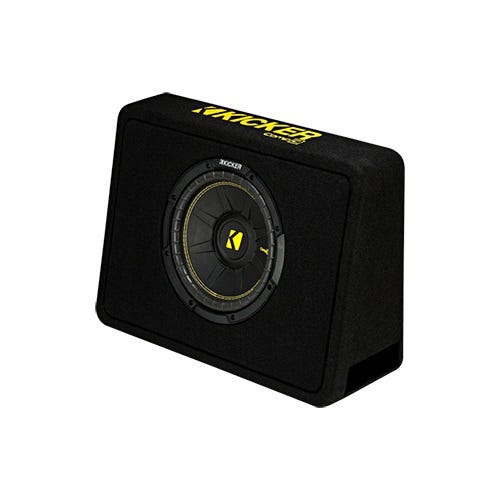

Kicker 44TCWC102

Features

• Fits Perfectly Under Or Behind A Seat
• Genuine CompC Subwoofer
• Custom Port Design
• Made Of Heavy MDF
• Spring Loaded Speaker Terminal
• Thick Black Carpet Protects the Enclosure
• Embroidered KICKER Logo
• Works Perfectly with CX300.1
• This enclosure works best with 300 watts of recommended power. See below for more details.

Specifications

• Subwoofer (in, cm) 10, 25
• Impedance (Ohms) 2
• Power Watts (peak/RMS) 600/300
• Sensitivity (dB 1w/1m) 93.8
• Box Top Depth (in, cm) 4, 10.2
• Box Bottom Depth (in, cm) 7-5/8, 19.4
• Box Height (in, cm) 15, 38.1
• Box Width (in, cm) 21-1/2, 54.6
• Recommended Amplifier CX300.1

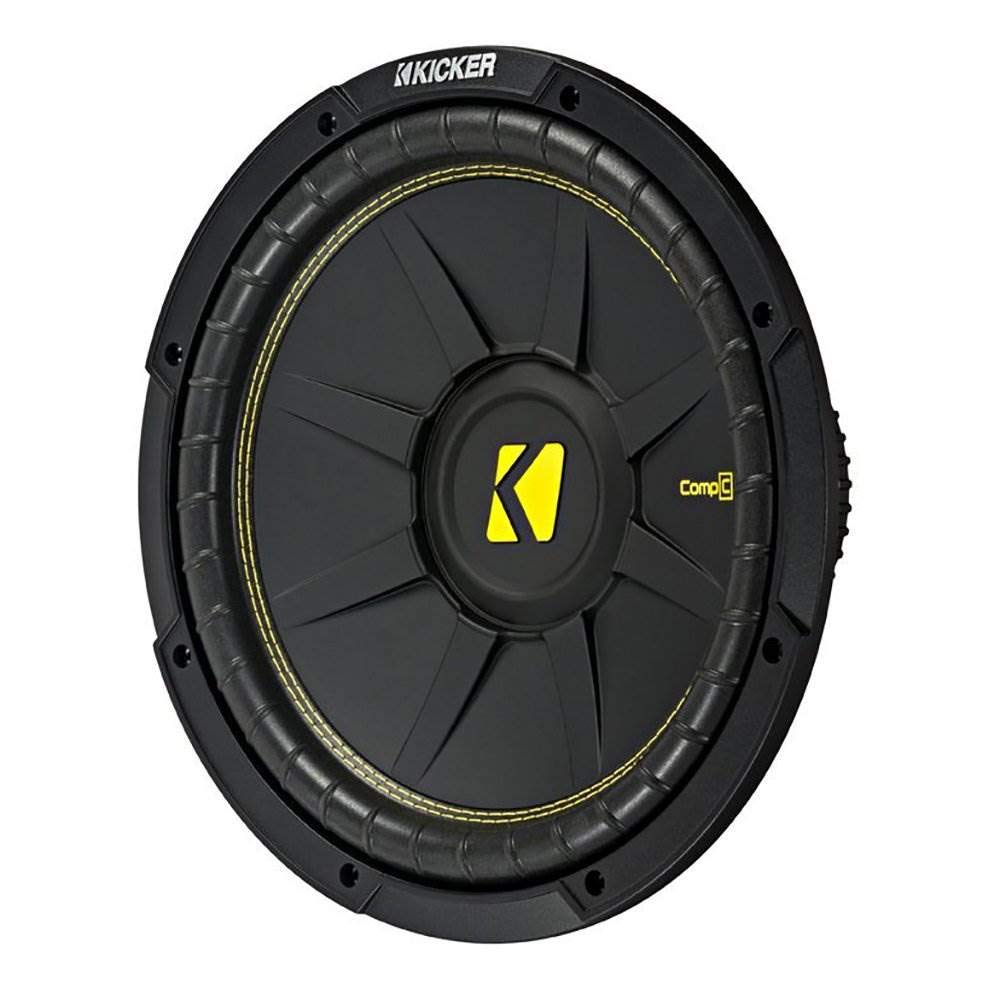

Kicker 44CWCS124

• Four-Ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Perimeter Venting for Thermal Management
• Ribbed Polyurethane Surround
• Signature Yellow Surround Stitching
• High-Strength Spiralead™ Tinsel Leads
• Stamped Steel Basket
• High Temp Voice Coil
• Spring-Loaded Speaker Terminals

• Size (IN.,CM) 12, 30
• Impedance (OHMS) 4 SVC
• Max Rec Amplifier Power (WATTS PEAK/RMS)* 600/300
• Sensitivity (dB 1w/1m) 88.3
• Frequency Response (Hz) 27-500
• Mounting Depth (in, cm) 5-3/8, 13.6
• Mounting Cutout (in, cm) 11, 27.9
• Min Sealed Box Vol (cu. ft, L) 1.25, 35.4
• Max Sealed Box Vol (cu. ft, L) 3.5, 99.1
• Min Vented Box Vol (cu. ft, L) 1.75, 49.6
• Max Vented Box Vol (cu. ft, L) 2.25, 63.7

• Dual two-Ohm Voice Coil
• Wrap Around Gasketing
• Patented Ribbed Corners
• Injection-Molded SoloKon™ Woofer
• 360-Degree Back Bracing
• UniPlate™ Back Plate And Pole Piece
• Bumped Back Plate
• Thick Tinsel Leads
• Large Ceramic Magnet
• Steel Basket With Spoke Design
• Nickel Plated Speaker Terminals

Kicker LX1200.5 5-Channel Amplifier

The Kicker LX-Series combines premium SQL design with powerful output, engineered using industry feedback to offer the most in-demand features while maintaining exceptional performance. All multi-channel amplifiers in this series are bridgeable and include a wired control center (LXCC). LX models with subwoofer sections come equipped with the advanced LXRC remote level control featuring SHOCwave2.0™ technology.

Engineered for Performance
The LX-Series is Kicker’s high-power, premium amplifier line, designed from the ground up for precision and longevity. Offering next-level flexibility and performance, it’s built to deliver powerful, long-lasting sound.

• Fine-tune your system with the included LX Control Center for complete control over your setup.
• Monitor and adjust your subwoofer section with the LXRC Dash Remote.
• Class-D design ensures lower current draw, extended playing times, and reduced operating temperatures.
• Gain-match LEDs make it easy to dial in the perfect gain setting.
• Personalize the look with a reversible center panel and 11 RGB LED accent color options.
• FIT+™ technology accepts low- and high-level signals up to 40V, with differential inputs to eliminate noise for crystal-clear sound.
• Versatile turn-on modes and comprehensive protection ensure thermal, circuit, and voltage stability for reliable performance.

LX Control Center (LXCC) Features:

• Diagnostic readouts for real-time monitoring of battery voltage, LED output clip, amp temperature, and protection status.
• Precision controls for adjusting gain trim, left-channel time delay, and selectable crossover type, slope, and frequency (HP, LP, or BP crossovers for all full-range channels).
• Parametric bass boost with 0-6dB adjustable center frequency and Q for the sub channel.
• Cable length: 3.28 feet (1m), integrated directly into the amp.

LX Remote Control (LXRC) Features:

• Dynamic fingertip control for adjusting bass levels.
• SHOCwave2.0™ technology restores lost low-bass frequencies for improved sound.
• Fuel-gauge-style readout displays battery voltage.
• Adjust RGB LED brightness to customize your amp’s appearance.
• Output clipping indicator helps prevent distortion and protects your system.
• Cable length: 19.75 feet (6m) RJ45 cable.

Experience unparalleled control, versatility, and sound quality with the Kicker LX1200.5 Mono Subwoofer Amplifier.

Specifications

RMS Power [Watts/Channel] @ 14.4V

Amp 1 & Amp 2 (Stereo Channels):
2Ω Stereo: 175 x 4
4Ω Stereo: 125 x 4
4Ω Bridged: 350 x 2

Sub Channel:
1Ω mono: 700W
2Ω mono: 550W
4Ω mono: 300W

Dynamic Power [Watts]
1500

Frequency Response [Hz]
Stereo Channels: 20–20k
Sub Channel: 10–160 (+0/-1dB)

Signal-to-Noise Ratio (a-weighted, re: rated power)
>95dB

Signal-to-Noise Ratio (ref: 1W output)
>75dB

Dimensions [in, cm]
Height: 2-3/8 (6 cm)
Width: 8-7/16 (21.4 cm)
Length: 12-5/8 (32 cm)

Input Sensitivity
High level 1V–40V
Low level 125mV–5V

Variable Electronic Crossover

Amp 1 & Amp 2(Stereo Channels):
Off/HP/LP/BP
HP: 20–5kHz
LP: 40–5kHz

Sub Channel:
LP 40–160Hz, 24dB/octave Linkwitz-Riley

Selectable Topology:
12, 18, or 24dB/oct Butterworth;
12 or 24dB/oct Linkwitz-Riley

Variable Subsonic Filter
24dB/octave Linkwitz-Riley,
variable hi-pass @ 10–80Hz (sub channel only)

KickEQ+™ (Sub Channel)
0–6dB, variable center 20–80Hz,
variable bandwidth 1–5

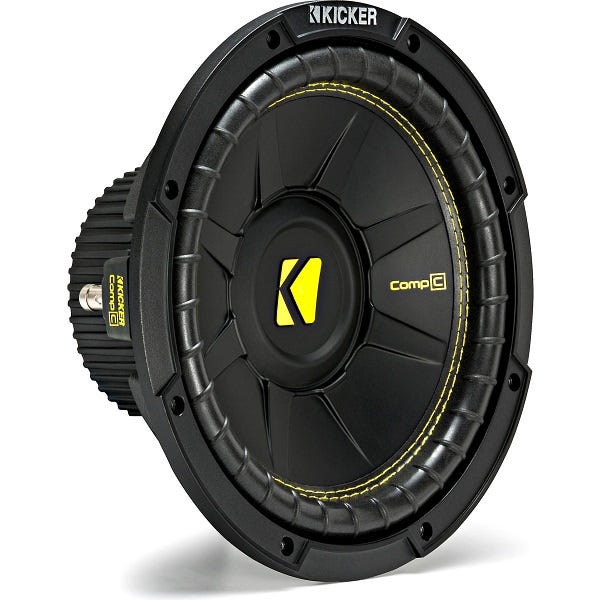

KICKER 44CWCS104 CompC 10" 500 Watt Subwoofer - 4 Ohm

• Four-Ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Perimeter Venting for Thermal Management
• Ribbed Polyurethane Surround
• Signature Yellow Surround Stitching
• High-Strength Spiralead™ Tinsel Leads
• Stamped Steel Basket
• High Temp Voice Coil
• Spring-Loaded Speaker Terminals

Specifications

• Size (IN.,CM) 10, 25
• Impedance (OHMS) 4 SVC
• Max Rec Amplifier Power (WATTS PEAK/RMS)* 600/300
• Sensitivity (dB 1w/1m) 86.2
• Frequency Response (Hz) 30-500
• Mounting Depth (in, cm) 4-13/16, 12.2
• Mounting Cutout (in, cm) 9-1/8, 23.1
• Min Sealed Box Vol (cu. ft, L) 1.0, 28.3
• Max Sealed Box Vol (cu. ft, L) 2.4, 68
• Min Vented Box Vol (cu. ft, L) 1.25, 35.4
• Max Vented Box Vol (cu. ft, L) 1.75, 49.6

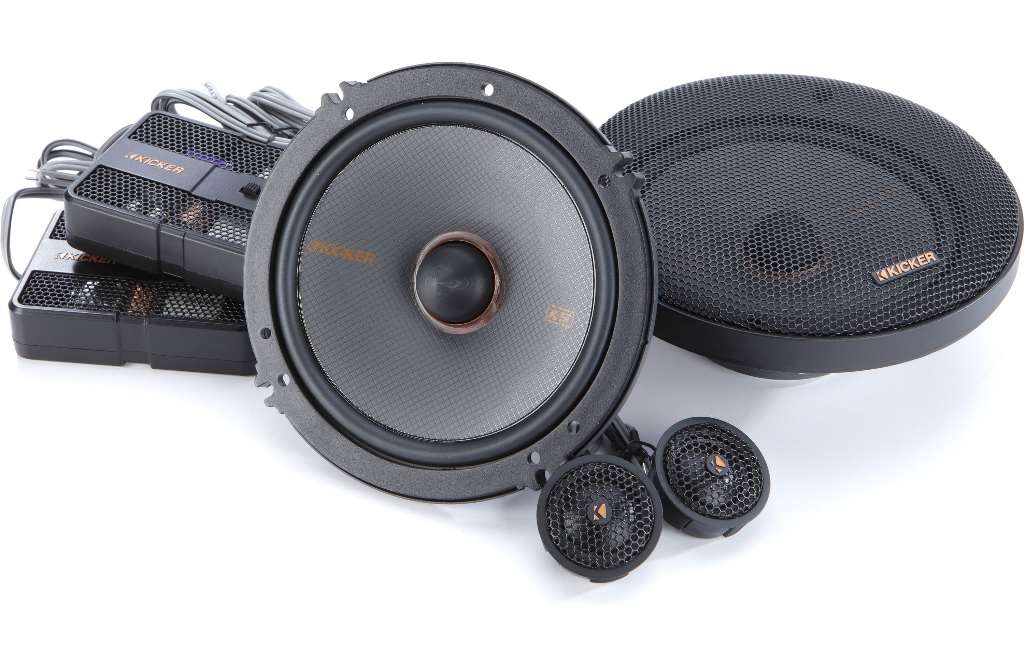

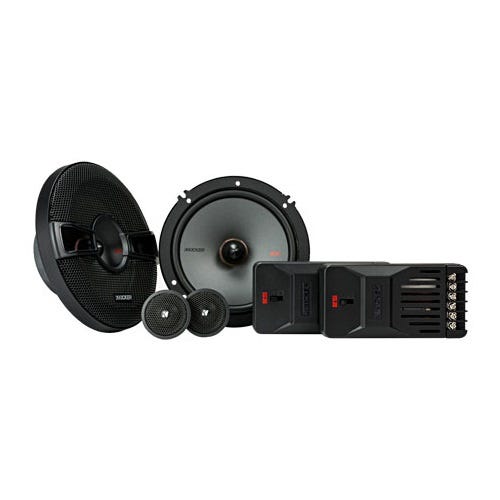

Kicker 44KSS6504

• High Power Handling
• Extended Dynamic Range
• EVC™ (Extended Voice Coil) Technology For Deep, Smooth Bass
• Polypropylene Woofer And Tough Rubber Surrounds
• Silk Dome Tweeters For A Smooth Sound
• Three Tweeter Mounting Options (Hardware Included)
• Easily Converts to Coaxial Design With Included Tweeter Post
• Thin-Mount Design Easily Fits Behind Factory Grilles
• Grilles Included

• Woofer [in, mm] 6-½, 160
• Tweeter [in,mm] 1, 25
• Dome Material Silk
• Rated Impedance [Ω] 4
• Peak Power Handling [Watts] 250
• Continuous Power Handling [Watts RMS] 125
• Sensitivity [1W, 1m] 88
• Frequency Response [Hz] 35-21k
• Woofer Mounting Hole Diameter [in, mm] 4-13⁄16 , 123
• Woofer Bottom Mount Depth [in, mm] 1-¾, 45
• Flush Mount Tweeter Hole Diameter [in,mm] 1-¾, 45
• Flush Mount Tweeter Depth [in,mm] 11⁄16 , 17
• High Pass [dB], at Frequency [Hz] 12, 4,000
• Low Pass [dB], at Frequency [Hz] 12, 4,000
• High Frequency Output Attenuation [dB] 0, 4.5, 9

Kicker LX500.4 4-Channel Amplifier

The KICKER LX-Series combines high-performance sound quality (SQL) with powerful output, designed based on industry feedback to include the most sought-after features. These multi-channel amplifiers are fully bridgeable and come equipped with the LX Control Center (LXCC) for precision adjustments.

Engineered for Excellence
The LX-Series represents KICKER’s premium high-power amplifier line, designed from the ground up for superior performance, durability, and flexibility.

• LX Control Center Included – Fine-tune your system with precision.
• Class-D Efficiency – Lower current draw, extended playtime, and reduced operating temperatures.
• Gain-Match LEDs – Ensure perfect gain settings for optimal audio quality.
• Customizable Aesthetics – A reversible center panel and 11 RGB LED accent color options.
• Advanced FIT+™ Technology – Accepts both low- and high-level signals up to 40V with full differential inputs to eliminate unwanted noise.
• Versatile Turn-On Modes & Protection Features – Ensuring thermal, circuit, and voltage stability for reliable performance.

LX Control Center (LXCC) – Total System Management

• Real-Time Diagnostics – Monitor battery voltage, LED output clipping, amplifier temperature, and protection status.
• Precision Tuning – Adjust gain trim, left-channel time delay, and customize crossover settings (HP, LP, or BP) with selectable slope and frequency.
• Integrated 3.28 ft (1m) Cable – Directly connects to the amplifier for seamless control.

The KICKER LX500.4 delivers high-powered performance with cutting-edge features, making it the ultimate amplifier for your audio system.

Specifications
RMS Power [Watts/Channel] @ 14.4V:
    2Ω Stereo: 225 x 4
    4Ω Stereo: 125 x 4
    4Ω Bridged: 450 x 2
Dynamic Power [Watts]: 1100
Frequency Response [Hz]: 20–20k
Signal-to-Noise Ratio: (a-weighted, re: rated power): >95dB
Signal-to-Noise Ratio (ref: 1W output): >75dB
Dimensions [in]: Height: 2-3/8 x Width: 8-7/16 x Length: 9-7/16
Input Sensitivity: High level 1V–40V | Low level 125mV–5V
Variable Electronic Crossover:
    24dB/octave Linkwitz-Riley
    Each channel pair Off/HP/LP/BP:
    HP: 20–5kHz
    LP: 40–5kHz
    Selectable Topology: 12, 18, or 24dB/oct Butterworth;
    12 or 24dB/oct Linkwitz-Riley KickEQ+™: Not applicable for LX500.4 (no sub channel)
